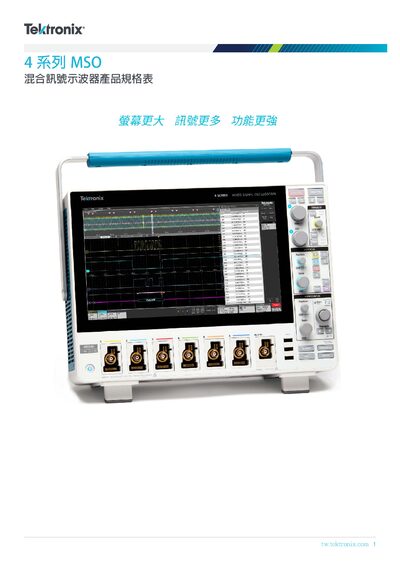

The Tektronix 4 Series MSO specification sheet details its channel options, bandwidth, sampling rates, display, trigger types and connectivity.
The 4 Series MSO offers models with four or six FlexChannel® input channels, each capable of analog or eight digital logic inputs. Bandwidth ranges from 200 MHz to 1.5 GHz (upgradeable) and the instrument provides a real‑time sampling rate of 6.25 GS/s with up to 31.25 M points of record length (62.5 M points optional).
A 13.3‑inch color TFT display (1920 × 1080) with capacitive multi‑touch control enhances usability. Connectivity includes USB 2.0 host/device, LAN (10/100/1000 Base‑T), and HDMI. The unit weighs less than 16.8 lb (7.6 kg) and supports extensive upgrade options for bandwidth, analysis modules, and additional functionality. This manual is written in Chinese.
| Input Channels | 4 or 6 FlexChannel® channels |
|---|---|
| Bandwidth | 200 MHz – 1.5 GHz (upgradeable) |
| Sampling Rate | 6.25 GS/s |
| Record Length | 31.25 M points (standard) / 62.5 M points (upgrade) |
| Vertical Resolution | 12‑bit ADC, up to 16‑bit in high‑resolution mode |
| Display | 13.3‑inch color TFT, 1920 × 1080 |
| Connectivity | USB 2.0 host/device, LAN 10/100/1000, HDMI |
| Weight | <16.8 lb (7.6 kg) |
It offers models with either four or six FlexChannel® input channels.
The instrument can be upgraded to a maximum analog bandwidth of 1.5 GHz.
Yes, the front panel features a capacitive multi‑touch screen.
All 4 Series MSO models can be upgraded on‑site to any higher bandwidth option.
