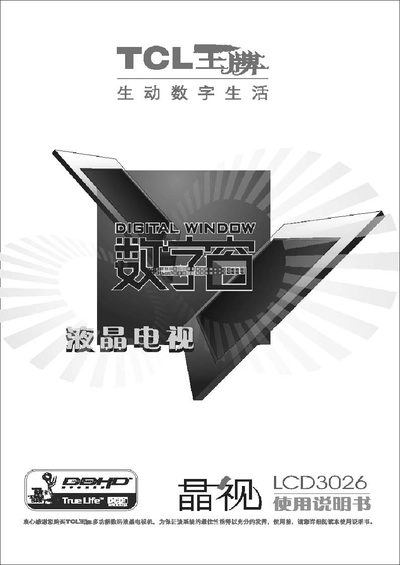

TCL LCD3026 Television User Manual
This manual introduces the TCL LCD3026 liquid‑crystal television, highlighting its high‑resolution display, low power consumption, and compact design. It outlines key features, safety precautions, and the required accessories.
The guide details how to connect an antenna or cable, hook up a computer via DVI, adjust picture settings such as brightness, contrast, and color temperature, and explains the specifications and warranty information. This manual is written in Chinese.
TCL LCD3026 specifications
| Audio Output Power | 7W+FN |
|---|---|
| Operating Voltage | 165‑240 V |
| Rated Power | 190 W |
| Screen Diagonal | 16 inches |
| Dimensions | 935 mm × 2 mm × 5 mm |
| Weight | 16 kg |
| Operating Temperature | -15 °C to 35 °C |
| Relative Humidity | 10 % – 90 % |
All TCL LCD3026 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I connect an antenna or cable TV to the LCD3026?
Use a 75 Ω coaxial cable and connect it to the TV’s antenna input; the manual provides the recommended cable specifications.
How can I connect a computer to the TV?
Connect the computer’s DVI output to the TV’s DVI input and route the audio to the left/right audio terminals.
