Start here

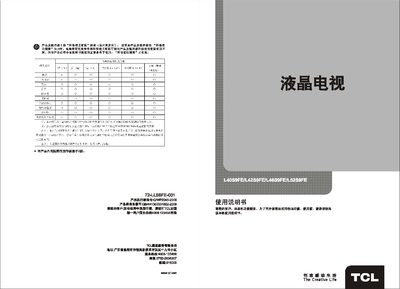

TCL L40S9FE / L42S9FE / L46S9FE / L52S9FE TV User Manual
The manual begins with safety warnings and environmental usage limits, reminding users to keep ventilation openings clear, avoid inserting sharp objects, and never attempt to disassemble the TV. It also details proper cleaning of the LCD screen using a dry soft cloth and warns against pressure or chemical cleaners.
Subsequent sections describe the TV’s functions and features, including multiple input options (HDMI, AV, VGA, USB, etc.), image modes, remote‑control operation, basic on/off and channel navigation, and a comprehensive troubleshooting guide covering no‑picture, no‑sound, and network download issues. This manual is written in Chinese.
TCL L40S9F specifications
| 工作电压 | 220V‑50Hz (L40S9FE), 220V‑59Hz (L42S9FE/L46S9FE), 220V‑50Hz (L52S9FE) |
|---|---|
| 额定消耗功率 | 200W (L40S9FE), 220W (L42S9FE), 250W (L46S9FE/L52S9FE) |
| 可视图像对角线尺寸 | 101 cm (40"), 107 cm (42"), 132 cm (46"), 132 cm (52") |
| 工作温度范围 | 20 °C ~ 80 °C |
| 储存温度范围 | -15 °C ~ 45 °C |
Source: TCL L40S9FE / L42S9FE / L46S9FE / L52S9FE TV User Manual
All TCL L40S9F documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I change the language of the TV menu?
Press the MENU button, select the Language option, and choose either Chinese or English.
What should I do if I won’t use the TV for a long time?
Unplug the power cord from the outlet and, if desired, remove the batteries from the remote control.
