Key facts
- Brand
- TCL
- Model
- L42F19F
- Category
- Television
- Documents
- 2
- Languages
- ZH · EN
- Last added
- 2012-03-22
Start here

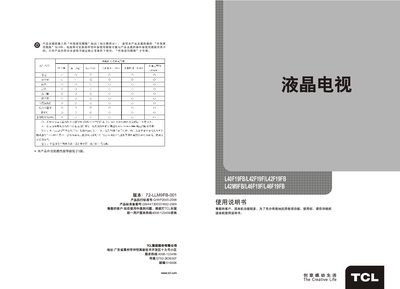

TCL L40F19FB/L42F19F/L42F19FB/L42M9FB/L46F19F/L46F19FB Television Manual
This manual covers the basic operation of the TCL television series, including power on/off, channel selection, volume control, and menu navigation. It also describes the on‑screen display (OSD) functions and how to adjust picture and sound settings.
The document lists the available external connections such as HDMI, USB, VGA and AV ports, and provides guidance on connecting external devices. Reference tables show button layouts on the remote and the front panel, as well as the supported refresh rate of the display.
TCL L42F19F specifications
| Speaker Output Power (L+R) | 8W+8W |
|---|---|
| Rated Power Consumption | 75W |
| Main Unit Dimensions (W×H×D) | 970 mm × 630 mm × 91 mm |
| Main Unit Weight | 16.4 kg |
| Operating Temperature | 5 °C ~ 35 °C |
| Operating Humidity | 20 % ~ 80 % |
| Storage Temperature | -15 °C ~ 45 °C |
| Power Supply | 220 V ~ 50 Hz |
Source: TCL L42F19FBE / L46F19FBE / L40E9FBE / L42E9FBE / L46E9FBE Television User Manual
All TCL L42F19F documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I replace the batteries in the remote control?
Open the battery compartment on the back of the remote, insert two AA batteries with the correct polarity, and close the compartment cover.
From: TCL L42F19FBE / L46F19FBE / L40E9FBE / L42E9FBE / L46E9FBE Television User Manual
