Start here

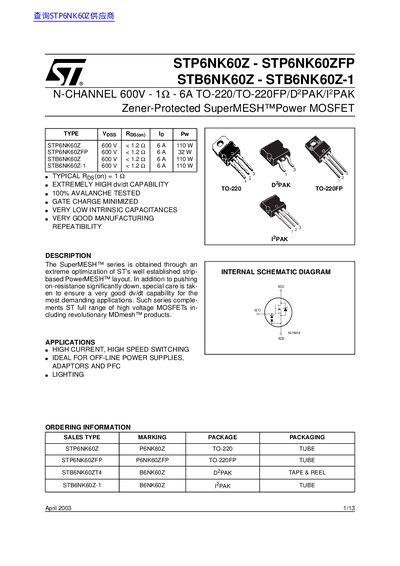

ST STP6NK60Z - STP6NK60ZFP STB6NK60Z - STB6NK60Z-1 N-CHANNEL 600V - 1 - 6A TO-220/TO-220FP/D2 PAK/I 2 PAK Zener-Protected SuperMESH Power MOSFET handbook
This document provides technical specifications and characteristics for the STMicroelectronics SuperMESH™ series of N-channel Power MOSFETs. The devices are designed with a Zener-Protected Gate to source integrity, eliminating the need for external components while enhancing ESD capability and absorbing voltage transients.
The datasheet covers four specific models: STP6NK60Z, STP6NK60ZFP, STB6NK60Z, and STB6NK60Z-1. These devices are available in TO-220, TO-220FP, D2PAK, and I2PAK packages and are optimized for high current, high speed switching applications such as off-line power supplies, adapters, PFC circuits, and lighting.
STMicroelectronics TO-220FP specifications
| Drain-source Voltage (VDS) | 600 V |
|---|---|
| Continuous Drain Current at Tc=25°C | 6 A |
| Total Dissipation at To=25°C | 110 W / 32 W |
| Operating Junction Temperature Range | -55 to 150 °C |
| Gate-Source Breakdown Voltage | 30 V |
| Input Capacitance | 905 pF |
| Turn-on Delay Time (Typical) | 14 ns |
All STMicroelectronics TO-220FP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- ST STP6NK60Z - STP6NK60ZFP STB6NK60Z - STB6NK60Z-1 N-CHANNEL 600V - 1 - 6A TO-220/TO-220FP/D2 PAK/I 2 PAK Zener-Protected SuperMESH Power MOSFET handbook 14 p
- STMICROELECTRONICS STP20N20 STF20N20 - STD20N20 N-CHANNEL 200V - 0.10 - 18A TO-220/TO-220FP/DPAK LOW GATE CHARGE STripFET II MOSFET Manual 13 p
- STMICROELECTRONICS STP7NB80 STP7NB80FP N - CHANNEL 800V - 1.2 - 6.5A - TO-220/TO-220FP PowerMESH MOSFET handbook 9 p
- STMICROELECTRONICS STP7NB60 STP7NB60FP N-CHANNEL 600V - 1.0 - 7.2A TO-220/TO-220FP PowerMESH MOSFET handbook(1)(1) 11 p
- STMICROELECTRONICS STP7NB60 STP7NB60FP N-CHANNEL 600V - 1.0 - 7.2A TO-220/TO-220FP PowerMESH MOSFET handbook(1) 11 p
- ST STP5NB80 STP5NB80FP N - CHANNEL 800V - 1.8 - 5A - TO-220/TO-220FP PowerMESH MOSFET Manual 9 p
- ST STP16NB25 STP16NB25FP N - CHANNEL 250V - 0.220 - 16A - TO-220/TO-220FP PowerMESH MOSFET Manual 9 p
Questions answered in these manuals
What are the available packages for these MOSFETs?
The devices are available in TO-220, TO-220FP, D2PAK, and I2PAK packages.
What is the primary application for this SuperMESH series?
They are ideal for off-line power supplies, adapters, PFC circuits, and lighting applications.
What is the maximum drain‑source voltage for the STP7NB80 MOSFET?
The maximum drain‑source voltage is 800 V.
What is the maximum drain‑source voltage rating?
The MOSFETs are rated for a maximum drain‑source voltage of 600 V.
Which package types are available for these MOSFETs?
Both devices are offered in TO‑220 and TO‑220FP (front‑protected) packages.
What is the maximum drain‑source voltage for the STP7NB60 series?
The maximum drain‑source voltage is 600 V.
