Start here

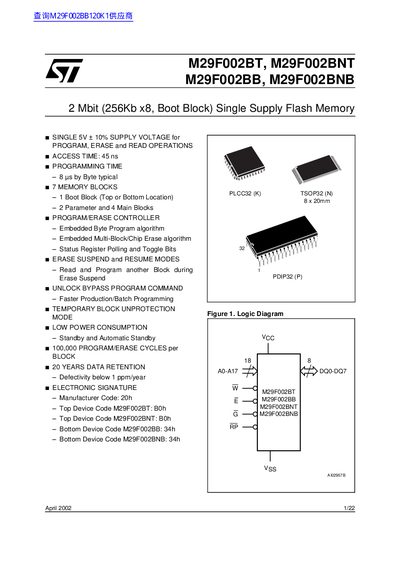

ST M29F002BT M29F002BNT M29F002BB M29F002BNB handbook
The document describes the M29F002BT, M29F002BB, M29F002BNT, and M29F002BNB series of 2Mbit (256Kb x8) non-volatile flash memory devices. These single-supply 5V devices support read, erase, and reprogram operations with access times as low as 45ns.
Read onlineSTMicroelectronics M29F002B specifications
| Memory density | 2 Mbit (256 Kb × 8) |
|---|---|
| Supply voltage (typical) | 5 V ±10 % |
| Supply voltage range | –0.6 V to 7 V |
| Fast programming time | 10 µs typical |
| Program/Erase cycles per block | 100 000 |
| Data retention | 20 years |
| Operating temperature range | –40 °C to 125 °C |
| Package types | PLCC32, PDIP32, TSOP32 (8 × 20 mm) |
Source: STMicroelectronics M29F002T/M29F002NT/M29F002B Flash Memory Datasheet
All STMicroelectronics M29F002B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage is required to perform program and erase operations?
The device requires a single 5V supply with a tolerance of +10% for all program, erase, and read operations.
How many times can each memory block be programmed or erased?
Each block is rated for 100,000 program/erase cycles.
How many program/erase cycles can each memory block endure?
Each block can be programmed and erased up to 100 000 times.
From: STMicroelectronics M29F002T/M29F002NT/M29F002B Flash Memory Datasheet
What is the data retention time for these flash memories?
The devices retain data for 20 years.
From: STMicroelectronics M29F002T/M29F002NT/M29F002B Flash Memory Datasheet
What supply voltage range does the M29F002 series support?
The devices operate with a supply voltage (Voc) from –0.6 V to 6 V.
From: ST M29F002BT M29F002BNT M29F002BB M29F002BNB(1) handbook
How many program/erase cycles can each memory block endure?
Each block is rated for up to 100,000 program/erase cycles.
From: ST M29F002BT M29F002BNT M29F002BB M29F002BNB(1) handbook
