This document describes the features of STP20N20, STF20N20, and STD20N20 N-channel MOSFETs. These MOSFETs are manufactured using STMicroelectronics' unique STripFET process and have low input capacitance and gate charge, making them suitable as primary switches in high-efficiency isolated DC-DC converters.

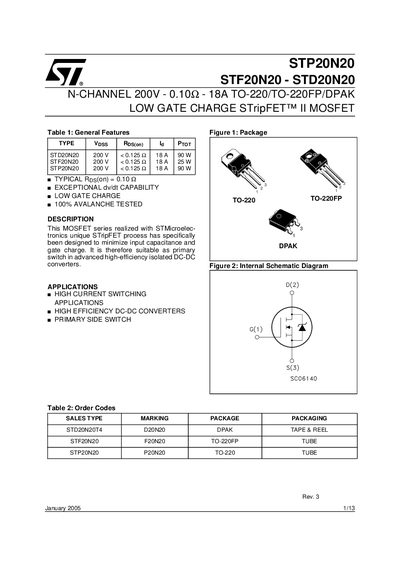

The STP20N20, STF20N20 and STD20N20 are N‑channel 200 V MOSFETs featuring low gate charge and low input capacitance, making them suitable as primary switches in high‑efficiency isolated DC‑DC converters. The series is realized with STMicroelectronics' STripFET™ process to minimize gate drive losses.
Key specifications include a continuous drain current of 18 A, typical on‑resistance of 0.10 Ω, and package options of TO‑220, TO‑220FP and DPAK. The datasheet provides absolute maximum ratings, thermal data, avalanche characteristics, and detailed electrical parameters such as capacitances and gate charge.
