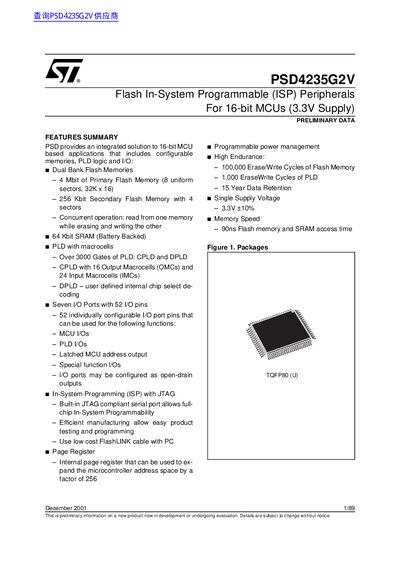

STMicroelectronics PSD4235G2V User Manual
This manual describes the PSD4235G2V flash‑in‑system programmable peripheral, including its dual‑bank flash memories, battery‑backed SRAM, and programmable logic blocks. It outlines the architecture, pin assignments, power‑management features, and the JTAG‑based programming interface.
The document also covers In‑System Programming (ISP) via JTAG, In‑Application Programming (IAP) using the dual flash banks, and detailed register descriptions, timing tables, and development tools such as PSDsoft Express.
STMicroelectronics PSD4235G2 specifications
| Primary Flash Memory | 4 Mbit (8 sectors, 32K x 16) |
|---|---|
| Secondary Flash Memory | 256 Kbit (4 sectors) |
| SRAM | 64 Kbit battery‑backed |
| PLD Gate Count | over 3000 gates |
| CPLD Macrocell Count | 16 Output, 24 Input |
| I/O Pins | 52 individually configurable pins |
| Supply Voltage | 3.38 V ±10% |
| Memory Access Time | 90 ns |
| Flash Endurance | 100,000 erase/write cycles |
| PLD Endurance | 1,000 erase/write cycles |
| Data Retention | 15 years |
