This document describes the features and characteristics of an N-channel power MOSFET product, including typical on-resistance, extremely high dv/dt capability, 100% avalanche tested, very low intrinsic capacitances, minimized gate charge, and switching characteristics. The product is suitable for high current, high speed switching, switch mode power supplies, welding equipment, uninterruptible power supplies, and motor drive applications.

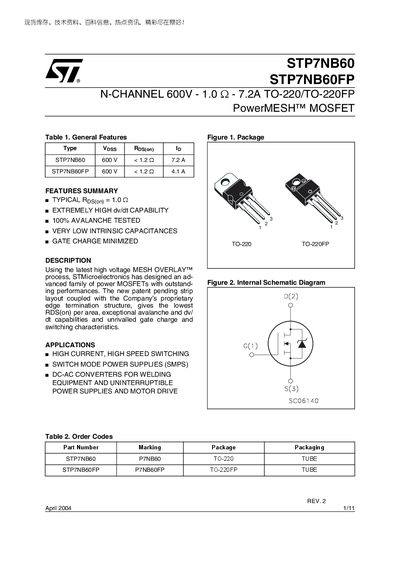

The STP7NB60 and STP7NB60FP are N‑channel PowerMESH MOSFETs rated for 600 V operation. The datasheet provides general features, absolute maximum ratings, thermal data, avalanche characteristics and detailed electrical parameters for both TO‑220 and TO‑220FP packages.
Key application areas include high‑current, high‑speed switching such as SMPS, DC‑AC converters for welding equipment, UPS and motor drives. Mechanical dimensions, package drawings and revision history are also included.
| Drain‑source Voltage (VDS) | 600 V |
|---|---|
| Gate‑source Voltage (VGS) | 30 V |
| Continuous Drain Current (25 °C) | 7.2 A (STP7NB60) / 41 A (STP7NB60FP) |
| Total Power Dissipation (25 °C) | 125 W (STP7NB60) / 40 W (STP7NB60FP) |
The MOSFETs are rated for a maximum drain‑source voltage of 600 V.
Both devices are offered in TO‑220 and TO‑220FP (front‑protected) packages.
The datasheet was released in April 2004, with a revision dated 14‑Apr‑2004.
