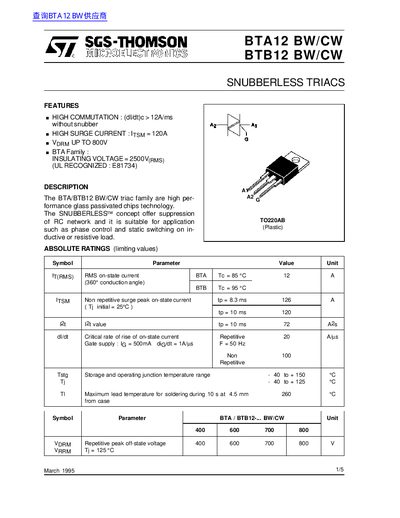

SGS-THOMSON BTA12/BTB12 BW/CW Snubberless Triac Datasheet
This document provides technical specifications for the BTA12 BW/CW and BTB12 BW/CW snubberless triac family. These high-performance glass passivated chips are designed for phase control and static switching applications on inductive or resistive loads without the need for an RC snubber network. The devices support a surge current of 120A and a repetitive peak off-state voltage up to 800V.
Read onlineSTMicroelectronics BTB12 B specifications
| RMS on-state current (BTA) | 12 A |
|---|---|
| Non repetitive surge peak on-state current | 126 A |
| Critical rate of rise of on-state current | 20 A/us |
| Storage and operating junction temperature range | - 40 to+ 150 °c |
| Maximum lead temperature for soldering | 260 °c |
| Repetitive peak off-state voltage | 400 to 800 V |
| Junction to ambient thermal resistance | 60 °CiW |
| Junction to case thermal resistance (DC) | 3.3 °C/W |
| Gate trigger current (MIN) | 2 mA |
| Gate trigger voltage (MAX) | 1.5 Vv |
| Package type | TO220AB Plastic |
Source: SGS-THOMSON BTA12/BTB12 BW/CW Snubberless Triac Datasheet
All STMicroelectronics BTB12 B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Do these triacs require a snubber network?
No, the SNUBBERLESS concept offers suppression of the RC network.
From: SGS-THOMSON BTA12/BTB12 BW/CW Snubberless Triac Datasheet
What is the maximum surge current?
The maximum surge current is 120A.
From: SGS-THOMSON BTA12/BTB12 BW/CW Snubberless Triac Datasheet
What is the critical rate of rise of on-state current?
The critical rate of rise of on-state current is 10 A/us.
What is the maximum gate trigger current?
The maximum gate trigger current is 50 mA.
What is the peak off‑state voltage rating of these triacs?
The devices are rated for a repetitive peak off‑state voltage of 800 V.
Which package is used for the BTA12 BW/CW and BTB12 BW/CW?
Both devices are supplied in a TO220AB plastic package.
