ST STP20NK50Z - STW20NK50Z STB20NK50Z - STB20NK50Z-S N-CHANNEL 500V -0.23 - 17A TO-220/D2 PAK/I 2 SPAK/TO-247 Zener-Protected SuperMESH MOSFET handbook

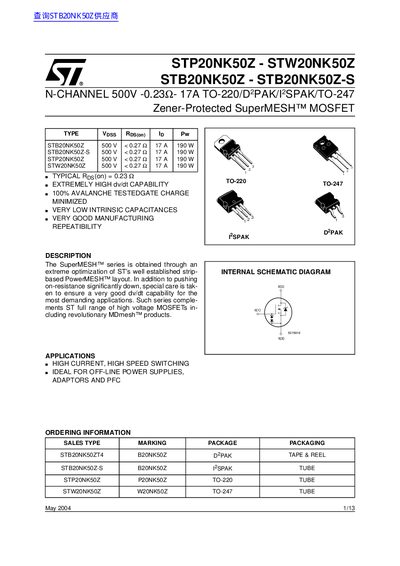

Datasheet 13 pages · 381 KB · EN
This document provides technical specifications for the STP20NK50Z, STB20NK50Z, STW20NK50Z, and STB20NK50Z-S N-Channel MOSFETs. These devices feature a Zener-Protected SuperMESH layout designed for high current, high speed switching applications such as off-line power supplies, adapters, and PFC circuits. The series offers extremely high dv/dt capability and very low intrinsic capacitances.
Read onlineAll STMicroelectronics STB20NK50Z-S documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for these MOSFETs?
They are ideal for high current, high speed switching, specifically for off-line power supplies, adapters, and PFC.
What is the maximum continuous drain current at a case temperature of 25°C?
The device supports a maximum continuous drain current of 17 A when the case temperature is 25°C.
