Start here

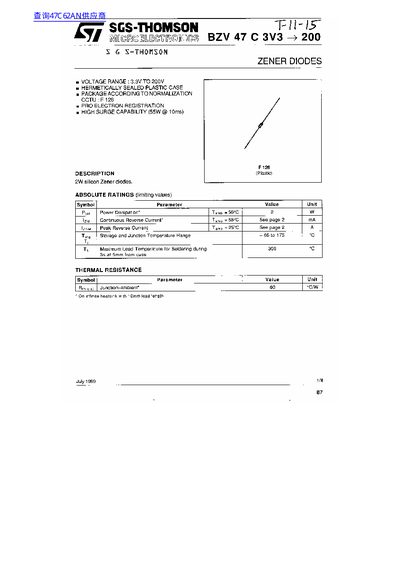

ST BZV 47 C 3V3 - 200 handbook
This document is a technical datasheet for the SGS-Thomson BZV47C series of silicon Zener diodes. The devices feature a hermetically sealed plastic case (Package F126) and are designed with high surge capability, rated at 55W @ 10ms.
The document provides absolute ratings including power dissipation up to 2W at 55°C ambient temperature and storage temperatures ranging from -65 to +175°C. It details electrical characteristics for various Zener voltages (from 3.3V to 200V) and includes graphs illustrating thermal resistance, power dissipation versus ambient temperature, and regulation voltage curves.
STMicroelectronics BZV47C specifications
| Voltage Range | 3.3V to 200V |
|---|---|
| Surge Capability | 55W @ 10ms |
| Power Dissipation | 2 W at Tamb = 55°C |
| Storage Temperature Range | -65 to +175 °C |
Source: ST BZV 47 C 3V3 - 200 handbook
All STMicroelectronics BZV47C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power dissipation at 55°C?
The maximum power dissipation (Pt) is 2 W when the ambient temperature is 55°C.
What is the storage and junction temperature range?
The device can operate within a storage and junction temperature range of -65 to +175 °C.
What is the voltage range of the BZV47C series?
The series covers voltages from 5.1 V up to 200 V.
From: SGS‑Thomson BZV47C5V1/BZV47C200 2W Zener Diode Datasheet
What is the maximum power dissipation of the BZV47C5V1 diode?
It can dissipate up to 2 W when mounted on an infinite heatsink at an ambient temperature of 55 °C.
From: SGS‑Thomson BZV47C5V1/BZV47C200 2W Zener Diode Datasheet
