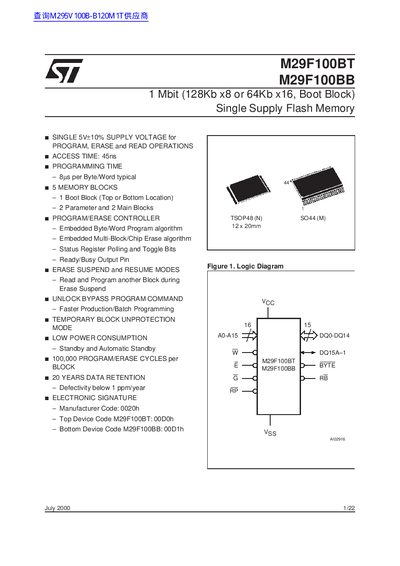

STMicroelectronics M29F100BT/M29F100BB 1Mbit Flash Memory Datasheet
The M29F100BT and M29F100BB are 1 Mbit (128Kb x8 or 64Kb x16) non-volatile flash memory devices designed for single 5V supply operations. These devices feature a single supply voltage for program, erase, and read operations, with an access time of 45ns and a programming time of 8µs per byte/word.
Read onlineSTMicroelectronics M29F100B specifications
| Memory Capacity | 1 Mbit (128Kb x8 or 64Kb x16) |
|---|---|
| Access Time | 45ns |
| Programming Time | 8µs per Byte/Word |
| Supply Voltage | 5V |
| Operating Temperature (Option 3) | -40 to 125 °C |
| Storage Temperature | -65 to 150 °C |
| Program/Erase Cycles | 100,000 |
| Data Retention | 20 YEARS |
Source: STMicroelectronics M29F100BT/M29F100BB 1Mbit Flash Memory Datasheet
All STMicroelectronics M29F100B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the memory capacity of the M29F100BT?
The memory capacity is 1 Mbit, organized as 128Kb x8 or 64Kb x16.
From: STMicroelectronics M29F100BT/M29F100BB 1Mbit Flash Memory Datasheet
What is the access time for this flash memory?
The access time is 45ns.
From: STMicroelectronics M29F100BT/M29F100BB 1Mbit Flash Memory Datasheet
What is the organization of the M29F100 memory?
The device is organized as 128Kb x8 or 64Kb x16 bits, selectable by the BYTE signal.
From: STMicroelectronics M29F100T/M29F100B 1 Mbit Flash Memory Datasheet
Can block erase operations be suspended?
Yes, the block erase operation can be suspended to read from or program other blocks.
From: STMicroelectronics M29F100T/M29F100B 1 Mbit Flash Memory Datasheet
