Siemens S7-200 Manuals

ManualLib has 21 documents for the Siemens S7-200: 11 programming manuals, 5 user manuals. Every file can be read online or downloaded as a PDF for free.

Programming Manual 11User Manual 5

Key facts

Brand
Siemens
Model
S7-200
Industry
Industrial
Documents
21
Languages
EN · ZH · JA
Last added
2026-11-06

Start here

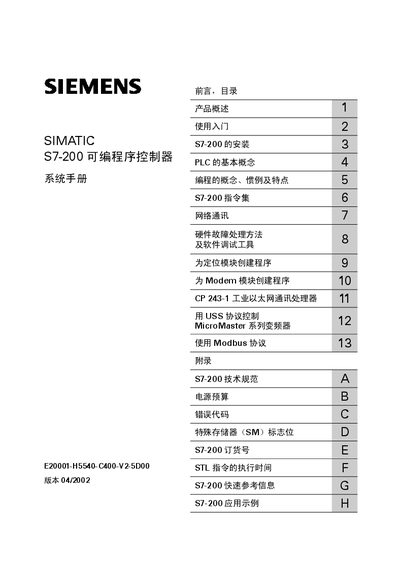

SIEMENS SIMATIC S7-200 Can be made available program controller E20001-H5540-C400-V2-5D00 system Manual

SIEMENS SIMATIC S7-200 Can be made available program controller E20001-H5540-C400-V2-5D00 system Manual

User Manual 596 pages · 10.9 MB · ZH

The Siemens S7-200 System Manual provides comprehensive information for engineers, programmers and installers. It includes product overviews, safety guidelines, installation instructions, basic PLC concepts, programming conventions, the full S7-200 instruction set, and network communication details.

Additional sections cover hardware fault handling, software debugging tools, programming guides for positioning and modem modules, Ethernet processor usage, USS and Modbus protocol control of VFDs, and extensive appendices with technical specifications, power budgeting, error codes and example applications. This manual is written in Chinese.

Read online

Siemens S7-200 specifications

EM 231 Dimensions71.2 x 80 x 62 mm
EM 232 Dimensions46 x 80 x 62 mm
EM 235 Dimensions71.2 x 80 x 62 mm
EM 231 Input Filter Attenuation-3 db at 3.1 Khz
EM 231 Common Mode Rejection40 dB, DCto 60 Hz
EM 232 Output Accuracy (Typical)±0.5% of full-scale
EM 232 Minimum Drive Impedance5000 Ω
EM 232 Maximum Drive Impedance500Ω
EM 232 Supply Voltage Range20.4 to 28.8 VDC
EM 235 Input Resolution (Unipolar)12 bits
EM 235 Input Resolution (Bipolar)11 bits plus sign bit

Source: Siemens S7-200 Analog Expansion Modules Specifications

All Siemens S7-200 documents by type

Programming Manual 11

Instruction set, parameters and examples for configuring or programming the device.

User Manual 5

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Datasheet 1

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What are the order numbers for the S7-200 analog expansion modules?

The order numbers are 6ES7 231--0HC22--0XA0 for EM 231, 6ES7 232--0HB22--0XA0 for EM 232, and 6ES7 235--0KD22--0XA0 for EM 235.

From: Siemens S7-200 Analog Expansion Modules Specifications

Is the EM 231 module recommended for use with thermocouples?

No, the EM 231 and EM 235 expansion modules are not recommended for use with thermocouples.

From: Siemens S7-200 Analog Expansion Modules Specifications

What is the S7-200 product designed for?

The S7-200 series small PLC is designed for use in various automation systems.

From: Siemens S7-200 Programmable Controller System Manual

Who is authorized to install and operate the S7-200 equipment?

Only qualified personnel are permitted to install and operate the equipment.

From: Siemens S7-200 Programmable Controller System Manual

What is the purpose of the car reciprocating motion experiment?

The purpose is to master the design of automatic control for car reciprocating motion and practice basic instructions like AND, OR, and NOT.

From: Siemens S7-200 PLC Experiment Guide

What hardware is required for the flashing circuit experiment?

The experiment requires one S7-200 PLC (CPU224), one computer, one PPI-RS485 programming cable, and several wires.

From: Siemens S7-200 PLC Experiment Guide
