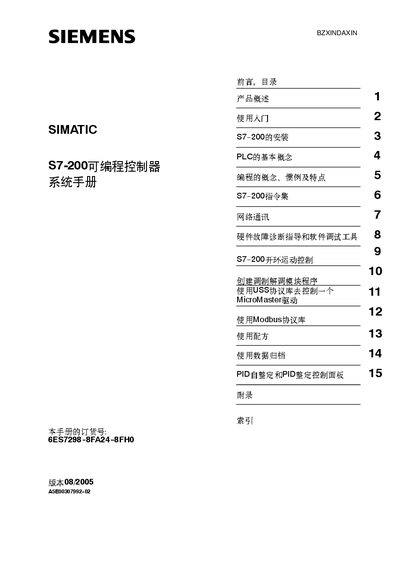

S7-200 programmable controller system manual, introduces the characteristics of the product, including modular structure, simplified internal wiring, omission of terminal blocks, no need to disconnect the meter, no need for a power switch, no multimeter, no need to disconnect the meter, no need for installation board
This manual covers the complete lifecycle of the S7-200 programmable logic controller, including hardware installation, basic PLC concepts, instruction set details, network communication options, and diagnostic tools. It also explains advanced features such as open‑loop motion control, PID auto‑tuning, data archiving, and using protocol libraries for Modbus, USS and MicroMaster drives.
The document includes safety guidelines, certification information, and references to additional resources such as online help, application examples, and support contacts. Appendices provide technical specifications, part numbers and an index for quick reference. This manual is written in Chinese.
