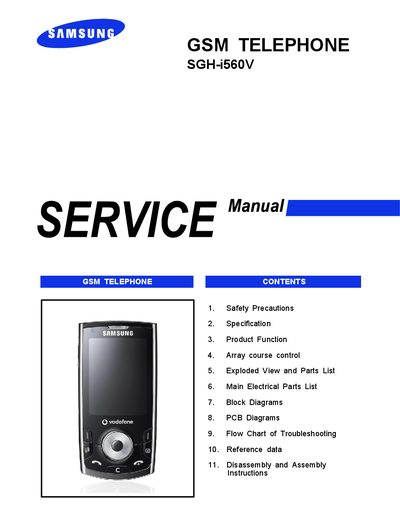

This is a service manual for the Samsung i560v phone, which includes safety precautions, specifications, product functions, array control, exploded view and parts list, main electrical parts list, block diagrams, PCB diagrams, troubleshooting flowchart, reference data and disassembly and assembly instructions.
This service manual provides detailed information for repairing the Samsung SGH-i560V GSM telephone. It includes safety precautions, technical specifications, functional descriptions, and extensive diagrams to aid technicians.
The document contains sections on safety, specifications, product functions, exploded views, electrical parts lists, block and PCB diagrams, troubleshooting flow charts, reference data, and step‑by‑step disassembly and assembly instructions.
| Power Class | max +33dBm |
|---|---|
| Frequency Bands (MHz) | 880~915, 1710~1785, 1850~1910, 1920~1980 |
| Sensitivity | -102dBm (GSM850), -100dBm (DCS1800/PCS1900), -106.7dBm (WCDMA2100) |
| Modulation | 0.3GMSK (GSM), HPSK (WCDMA) |
Use a standard screwdriver, avoid magnetic tools, work in a shielded box, and follow all ESD precautions to prevent damage to sensitive components.
The phone supports EGSM 900 (880‑915 MHz), DCS 1800 (1710‑1785 MHz), PCS 1900 (1850‑1910 MHz), and WCDMA 2100 (1920‑1980 MHz).
