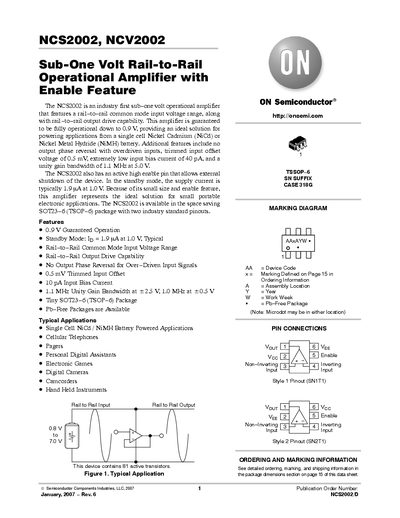

The NCS2002, NCV2002 is a small, single-channel, low voltage, low power, low noise, low input bias current operational amplifier.
The NCS2002 (and its automotive‑grade counterpart NCV2002) is a sub‑one‑volt operational amplifier that offers rail‑to‑rail input and output capability. It operates down to 0.9 V, features a trimmed 0.5 mV input offset, an ultra‑low 40 pA input bias current, and a 1.1 MHz unity‑gain bandwidth at 5 V. An active high‑enable pin allows external shutdown, reducing standby current to 1.9 µA at 1.0 V.
Typical applications include single‑cell NiCd/NiMH battery‑powered devices such as cellular phones, PDAs, digital cameras, camcorders, and hand‑held instruments. The device is supplied in a compact SOT23‑6 (TSOP‑6) package with two standard pinouts and is available in Pb‑free versions.
| Guaranteed operation voltage | 0.9 V |
|---|---|
| Standby mode supply current | 1.9 µA at 1.0 V |
| Input offset voltage (trimmed) | 0.5 mV |
| Input bias current | 40 pA |
| Unity‑gain bandwidth | 1.1 MHz at +2.5 V |
| Supply voltage range | 0.9 V to 7.0 V |
| Power dissipation (70 °C) | 340 mW |
| Operating temperature range (NCS2002) | -40 °C to 105 °C |
| Package type | TSOP‑6 (SOT23‑6) |
The standby mode current is typically 1.9 µA at a supply voltage of 1.0 V.
It is available in a space‑saving SOT23‑6 (TSOP‑6) package with two standard pinouts.
The input bias current is extremely low, about 40 pA.
The unity‑gain bandwidth is 1.1 MHz at a supply voltage of +2.5 V.
