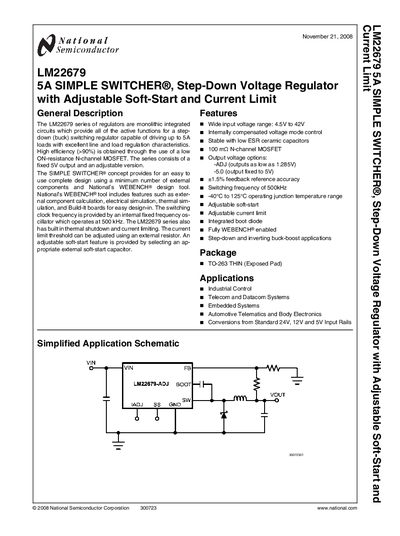

National Semiconductor LM22679 5A Simple Switcher Step-Down Voltage Regulator Datasheet
The LM22679 series provides a monolithic step‑down (buck) regulator capable of delivering up to 5 A with high efficiency (>90%). It integrates voltage‑mode control, adjustable soft‑start, adjustable current limit, an internal boot diode, and thermal shutdown, all in a TO‑263 THIN package.
Typical applications include industrial control, telecom and datacom systems, embedded systems, and automotive telematics. The device can be designed with minimal external components using National’s WEBENCH® design tools.
National Semiconductor LM22679 specifications
| Input voltage range | 4.5 V to 42 V |
|---|---|
| Switching frequency | 500 kHz |
| Efficiency | >90 % |
| Operating temperature range | -40 °C to 125 °C |
| Package type | 7‑Lead Plastic TO‑263 THIN |
Source: National Semiconductor LM22679 5A Simple Switcher Step-Down Voltage Regulator Datasheet
All National Semiconductor LM22679 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the LM22679?
The regulator operates from 4.5 V to 42 V input.
From: National Semiconductor LM22679 5A Simple Switcher Step-Down Voltage Regulator Datasheet
What is the fixed switching frequency?
The internal oscillator provides a fixed 500 kHz switching frequency.
From: National Semiconductor LM22679 5A Simple Switcher Step-Down Voltage Regulator Datasheet
