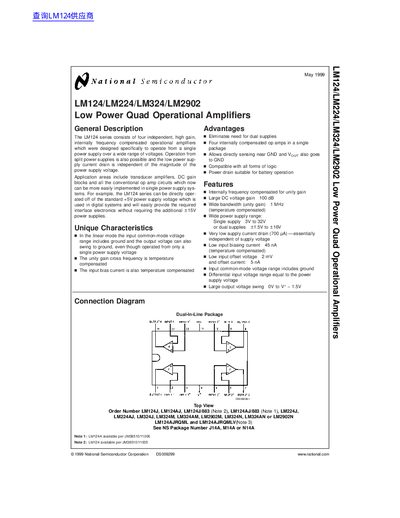

National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet
The LM124 series consists of four independent, high gain, internally frequency compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. These devices are suitable for application areas including transducer amplifiers, DC gain blocks, and conventional op amp circuits in single power supply systems.
Read onlineNational Semiconductor LM224 specifications
| Supply Voltage Range (Single) | 3V to 32V |
|---|---|
| Unity Gain Bandwidth | 1 MHz |
| Large DC Voltage Gain | 100 dB |
| Input Bias Current | 45 nA |
| Input Offset Voltage | 2mV |
| Operating Temperature Range (LM124) | -55°C to +125°C |
| Supply Current Drain | 700 pA |
Source: National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet
All National Semiconductor LM224 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet 19 p
- National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet 20 p
- National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Handbook 20 p
- National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet 20 p
Questions answered in these manuals
Can the LM124 series operate from a single power supply?
Yes, the series was designed specifically to operate from a single power supply over a wide range of voltages.
From: National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet
Does the output voltage swing to ground?
Yes, the output voltage can swing to ground even when operated from only a single power supply voltage.
From: National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet
What supply voltage range can the LM124 series operate from?
It can operate from a single supply of 3 V to 32 V or from dual supplies of +1.5 V to +16 V.
From: National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet
What is the typical unity‑gain bandwidth of these op‑amps?
The unity‑gain bandwidth is about 1 MHz.
From: National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Datasheet
What is the typical supply current drain of the LM124 series?
The supply current drain is about 700 µA and is essentially independent of the supply voltage.
From: National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Handbook
What is the input bias current for these amplifiers?
The input bias current is specified as 45 nA (temperature compensated).
From: National Semiconductor LM124/LM224/LM324/LM2902 Low Power Quad Operational Amplifiers Handbook
