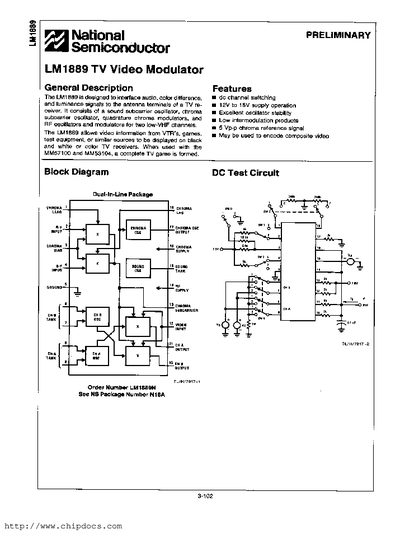

National Semiconductor LM1889 TV Video Modulator Datasheet
The LM1889 is a TV video modulator designed to interface audio, color difference, and luminance signals to the antenna terminals of a TV receiver. It includes a sound subcarrier oscillator, chroma subcarrier oscillator, quadrature chroma modulators, and RF oscillators for two low‑VHF channels, allowing video sources such as VTRs, games, or test equipment to be displayed on black‑and‑white or color TVs.
The device operates from a 12 V to 18 V supply, provides a 5 Vp‑p chroma reference signal, and supports RF carrier frequencies up to 100 MHz. Key electrical characteristics include a maximum supply current of 45 mA and a crystal‑controlled chroma oscillator frequency of 3.579545 MHz.
National Semiconductor LM1889 specifications
| Supply voltage range | 12 V to 18 V |
|---|---|
| Maximum supply current | 45 mA |
| Chroma reference signal level | 5 Vp‑p |
| RF oscillator maximum frequency | 100 MHz |
Source: National Semiconductor LM1889 TV Video Modulator Datasheet
All National Semiconductor LM1889 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the LM1889 support?
The LM1889 operates from 12 V to 18 V supply voltage.
From: National Semiconductor LM1889 TV Video Modulator Datasheet
What is the maximum supply current for the LM1889?
The maximum supply current is 45 mA.
From: National Semiconductor LM1889 TV Video Modulator Datasheet
