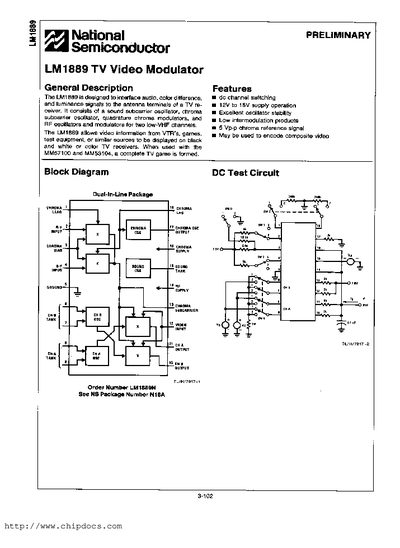

The LM1889 TV video modulator is designed to interface audio, color difference, and luminance signals to TV antenna terminals. It includes sound and chroma subcarrier oscillators, quadrature chroma modulators, and RF oscillators for two low‑VHF channels, allowing video sources such as VTRs or game consoles to be displayed on black‑and‑white or color TVs.
The document contains electrical characteristics, absolute maximum ratings, design notes, typical performance curves, and application information such as subcarrier oscillator design, chrominance modulation methods, and split‑power supply configurations for monochrome and color operation.
