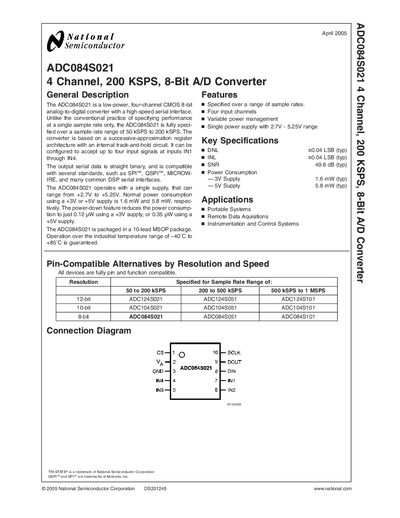

The ADC084S021 is a low-power, four-channel CMOS 8-bit analog-to-digital converter with a high-speed serial interface.
The ADC084S021 is a four‑channel, 8‑bit successive‑approximation CMOS analog‑to‑digital converter. It operates from a single supply (2.7 V to 5.25 V) and supports sample rates from 50 kSPS to 200 kSPS. The device is packaged in a 10‑lead MSOP and is rated for industrial temperature range –40 °C to +85 °C.
Key features include low power consumption (1.6 mW at 3 V, 5.8 mW at 5 V), built‑in power‑down mode, and compatibility with common serial interfaces such as SPI, QSPI, and Microwire. Detailed electrical characteristics, timing diagrams, and pin descriptions are provided for system integration.
| Supply Voltage Range | 2.7 V – 5.25 V |
|---|---|
| Sample Rate Range | 50 kSPS – 200 kSPS |
| Number of Input Channels | 4 |
| Resolution | 8 bits |
| Typical Power Consumption (3 V) | 1.6 mW |
| Typical Power Consumption (5 V) | 5.8 mW |
| Differential Non‑Linearity (DNL) | +0.04 LSB (typ) |
| Integral Non‑Linearity (INL) | +0.04 LSB (typ) |
| Signal‑to‑Noise Ratio (SNR) | 49.6 dB (typ) |
| Package Type | 10‑lead MSOP |
| Operating Temperature Range | -40 °C – +85 °C |
It operates from a single supply of 2.7 V to 5.25 V.
The device provides four analog input channels (IN1‑IN4).
Typical power consumption is 1.6 mW when powered at 3 V.
The converter can sample up to 200 kSPS.
