Key facts
- Brand
- Lincoln Electric
- Model
- INVERTEC V205
- Category
- Other Electronics
- Documents
- 6
- Languages
- ES · EN
- Last added
- 2023-10-15
Start here

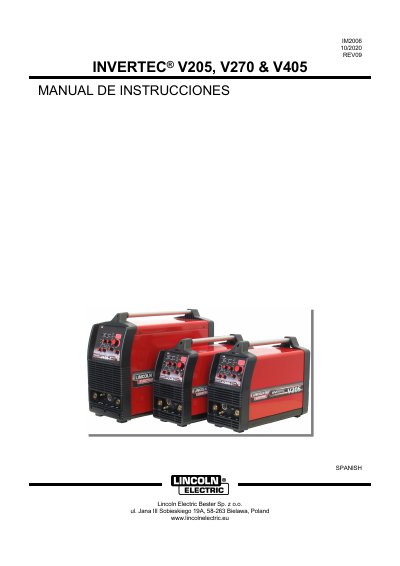

Lincoln Electric INVERTEC V205/V270/V405 Instruction Manual
This document is the Spanish instruction manual for the Lincoln Electric INVERTEC V205, V270, and V405 series of welding machines. It provides technical specifications for various models, including input/output voltage, current ranges, and physical dimensions. The manual also details recommended cable sections and fuse sizes for safe operation. This manual is written in Spanish.
Read onlineLincoln Electric INVERTEC V205 specifications
| Max Output Current (V205) | 170A |
|---|---|
| Max Output Current (V270) | 270A |
| Max Output Current (V405) | 400A |
| Output Voltage Range | 26.8 - 36.0 Vdc |
| Operating Temperature | -10°C to +40°C |
Source: Lincoln Electric INVERTEC V205/V270/V405 Instruction Manual
All Lincoln Electric INVERTEC V205 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Lincoln Electric INVERTEC V205/V270/V405 Instruction Manual 18 p
- Lincoln Electric INVERTEC V205/V270/V405 Instruction Manual 18 p
- Lincoln Electric INVERTEC V205/V270/V405 Welding Machine Operator's Manual 13 p
- Lincoln Electric INVERTEC V205/V270/V405 User Manual 14 p
- Lincoln Electric INVERTEC V205, V270 & V405 Operator's Manual 17 p
- Lincoln Electric Invertec V205, V270 & V405 Inverters Operator's Manual 17 p
Questions answered in these manuals
What gas mixture is recommended for welding carbon steel?
The manual recommends a mixture of Ar 75% and CO2 25%.
From: Lincoln Electric INVERTEC V205/V270/V405 Instruction Manual
What are the recommended network cable specifications for the INVERTEC V405?
The manual recommends a 4-conductor, 4mm² network cable.
From: Lincoln Electric INVERTEC V205/V270/V405 Instruction Manual
Where can I find the model name and serial number?
The model name, code, and serial number can be found on the machine rating plate.
From: Lincoln Electric INVERTEC V205/V270/V405 Welding Machine Operator's Manual
What should I do if the equipment is damaged during shipment?
Claims for material damaged in shipment must be notified immediately to the dealer.
From: Lincoln Electric INVERTEC V205/V270/V405 Welding Machine Operator's Manual
What safety measures are required for arc welding?
Qualified personnel must perform all installation, operation, maintenance, and repair procedures to avoid personal injury or equipment damage.
What is the maximum ambient temperature for operation?
The machine should not be operated in areas where the ambient temperature exceeds 40°C.
