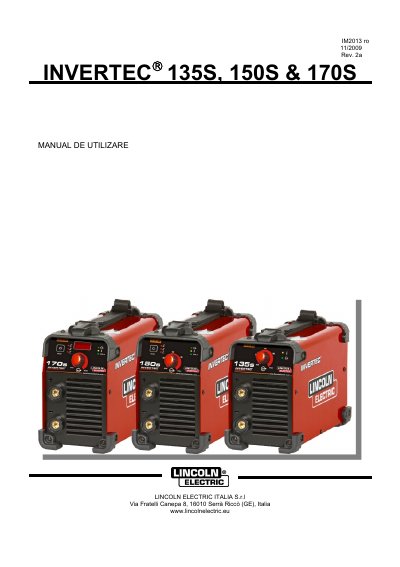

Lincoln Electric INVERTEC 135S/150S/170S User Manual
This document is the Romanian user manual for the INVERTEC 135S, 150S, and 170S welding machines manufactured by Lincoln Electric. It covers essential safety precautions, including warnings about electric shock, arc radiation, and fumes, as well as proper handling of gas cylinders.
The manual details installation and usage instructions, specifying placement requirements such as ventilation and temperature limits. It explains how to connect power supplies, including specific conditions for using thermal engine generators, and describes the setup for Shielded Metal Arc Welding (SEM) and Tungsten Inert Gas (WIG) processes using Twist-Mate connectors.
Lincoln Electric 135S specifications
| Output Current Range (135S) | 10 – 120A |
|---|---|
| Output Current Range (150S) | 10 – 140A |
| Output Current Range (170S) | 10 – 160A |
Source: Lincoln Electric INVERTEC 135S/150S/170S Welding Machine User Manual
All Lincoln Electric 135S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Lincoln Electric INVERTEC 135S/150S/170S Welding Machine User Manual 14 p
- Lincoln Electric 135S, 150S & 170S Welding Power Source User Manual 13 p
- Lincoln Electric INVERTEC 135S/150S/170S User Manual 15 p
- Lincoln Electric INVERTEC 135S/150S/170S Operator's Manual 13 p
- Lincoln Electric INVERTEC 135S/150S/170S Welding Machine User Manual 14 p
- Lincoln Electric INVERTEC 135S/150S/170S User Manual 14 p
- Lincoln Electric INVERTEC 135S, 150S & 170S Operator's Manual 13 p
- Lincoln Electric INVERTEC 135S/150S/170S Operator's Manual 10 p
- Lincoln Electric INVERTEC 135S/150S/170S Welding Machine User Manual 10 p
Questions answered in these manuals
What is the recommended fuse size for the INVERTEC 135S?
The recommended fuse is 16A for the standard model and 10A for the AUS model.
From: Lincoln Electric INVERTEC 135S/150S/170S Welding Machine User Manual
What is the maximum output voltage for the CE model?
The maximum output voltage in no-load condition is 45Vdc for the CE model.
From: Lincoln Electric INVERTEC 135S/150S/170S Welding Machine User Manual
Is the INVERTEC 150S compatible with Australian standards?
Yes, there is a specific model listed as INVERTEC 150S PACK AUS.
From: Lincoln Electric 135S, 150S & 170S Welding Power Source User Manual
What is the maximum welding current range for the INVERTEC 170S model?
The INVERTEC 170S supports a welding current range of 10 to 160A.
From: Lincoln Electric 135S, 150S & 170S Welding Power Source User Manual
Can the INVERTEC 135S be powered by a thermal engine generator?
No, the INVERTEC 135S has not been designed for this and using it with a motogenerator may damage the unit.
What are the voltage conditions for using a thermal engine generator with the 150S/170S?
The auxiliary supply must provide peak voltage under 410 V, frequency between 50 and 60 Hz, and RMS voltage of 230 V AC +/-15%.
