Key facts
- Brand
- Lincoln Electric
- Model
- INVERTEC 275TP
- Documents
- 3
- Languages
- IT · EN · PT
- Last added
- 2023-10-15
Start here

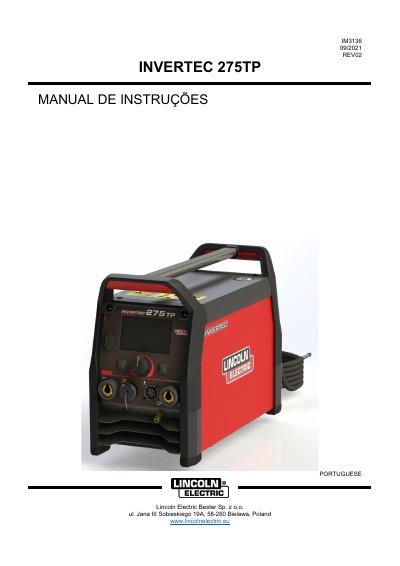

Lincoln Electric INVERTEC 275TP Welding Power Source User Manual
This document is the user manual for the Lincoln Electric INVERTEC 275TP welding power source. It provides technical specifications, including input/output ratings and dimensions, and details the ECO design features and electromagnetic compatibility (CEM) class of the unit. The manual is written in Portuguese and includes instructions for installation and operation.
Read onlineLincoln Electric INVERTEC 275TP specifications
| Max Input Current (GTAW) | 13.8A |
|---|---|
| Open Circuit Voltage GTAW | 72V |
| Protection Rating | IP23 |
Source: Lincoln Electric INVERTEC 275TP Welding Machine Operating Manual
All Lincoln Electric INVERTEC 275TP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum input current for GTAW?
The maximum effective input current (I1max) for GTAW is 13.8A.
From: Lincoln Electric INVERTEC 275TP Welding Machine Operating Manual
What are the recommended gas flow rates?
For common torches, Helium is 14-24 l/min and Argon is 7-16 l/min.
From: Lincoln Electric INVERTEC 275TP Welding Machine Operating Manual
What are the recommended input fuse sizes?
The manual recommends a gR type fuse or Z type circuit breaker rated at 16A for 400V AC.
Is this equipment suitable for residential use?
No, the EMC classification is Class A, meaning it is designed for industrial environments only and not for residential locations.
What is the electromagnetic compatibility class of the INVERTEC 275TP?
The product is Class A according to EN 60974-10, intended for use only in industrial environments.
From: Lincoln Electric INVERTEC 275TP Welding Power Source User Manual
What type of fuses are recommended for the INVERTEC 275TP?
The manual recommends gR type fuses or Z type circuit breakers.
From: Lincoln Electric INVERTEC 275TP Welding Power Source User Manual
