Key facts
- Brand
- Lincoln Electric
- Model
- 300TPX
- Category
- Other Electronics
- Documents
- 8
- Languages
- PT · ES · FR · EN
- Last added
- 2023-10-15
Start here

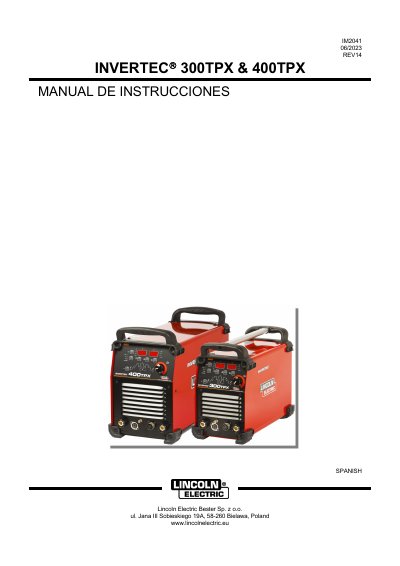

Lincoln Electric INVERTEC 300TPX & 400TPX User Manual
This document is the Spanish instruction manual for the INVERTEC® 300TPX and 400TPX welding power sources manufactured by Lincoln Electric. It provides technical specifications, design information regarding energy efficiency (ECO), electromagnetic compatibility (EMC) guidelines, and safety warnings. This manual is written in Spanish.
Read onlineLincoln Electric 300TPX specifications
| Input Voltage | 400V ± 15% Three-phase |
|---|---|
| Input Frequency | 50/60Hz |
| Output Current Range (300TPX) | 5 – 270A (con electrodo convencional) / 5 – 300A (TIG) |
| Weight (300TPX) | 21kg |
| Operating Temperature | -10°C to +40°C |
Source: Lincoln Electric INVERTEC 300TPX & 400TPX User Manual
All Lincoln Electric 300TPX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Lincoln Electric 300TPX & 400TPX Welding Machine User Manual 23 p
- Lincoln Electric INVERTEC 300TPX & 400TPX User Manual 24 p
- Lincoln Electric INVERTEC 300TPX & 400TPX Operating Instructions 22 p
- Lincoln Electric INVERTEC 300TPX and 400TPX Welding Machine User Manual 21 p
- Lincoln Electric INVERTEC 300TPX & 400TPX Welding Machine Operator's Manual 20 p
- Lincoln Electric 300TPX and 400TPX Inverter Welding Machine Operator's Manual 20 p
- Lincoln Electric 300TPX & 400TPX Welding Machine User Manual 21 p
- Lincoln Electric 300TPX & 400TPX Welding Machines Operator's Manual 22 p
Questions answered in these manuals
What is the recommended input fuse size for the 300TPX?
The recommended fuse size is 20A.
From: Lincoln Electric 300TPX & 400TPX Welding Machine User Manual
What is the recommended input cable size for the 400TPX?
The recommended cable size is 4x4mm².
From: Lincoln Electric 300TPX & 400TPX Welding Machine User Manual
What is the recommended fuse size for the INVERTEC 300TPX?
A 20A delay fuse or a 'D' characteristic circuit breaker is recommended.
From: Lincoln Electric INVERTEC 300TPX & 400TPX User Manual
Is the INVERTEC welding machine suitable for residential use?
No, this is a Class A equipment not designed for residential areas supplied by public low-voltage networks.
From: Lincoln Electric INVERTEC 300TPX & 400TPX User Manual
Is this equipment suitable for residential use on public low-voltage networks?
No, Class A welding equipment is not designed for residential areas supplied by public low-voltage distribution systems.
From: Lincoln Electric INVERTEC 300TPX & 400TPX Operating Instructions
What is the maximum output current for the INVERTEC 400TPX?
The maximum output current for the INVERTEC 400TPX is 400A.
From: Lincoln Electric INVERTEC 300TPX & 400TPX Operating Instructions
