Start here

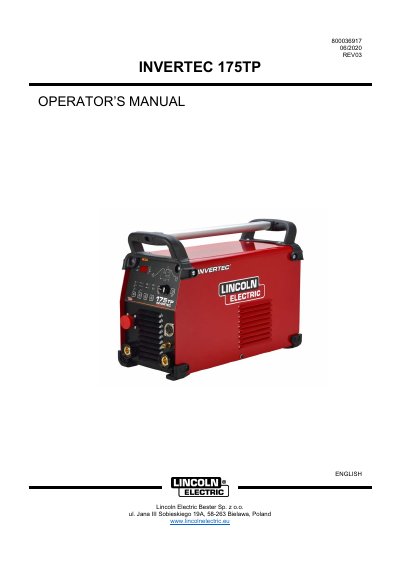

Lincoln Electric Invertec 175TP Operator's Manual
This document is the Operator's Manual for the Lincoln Electric Invertec 175TP welding machine. It covers essential topics including technical specifications, electromagnetic compatibility (EMC) considerations, and comprehensive safety warnings regarding electric shock, arc rays, and fumes. The manual is intended for qualified personnel to ensure safe installation and operation.
Read onlineLincoln Electric 175TP specifications
| Welding current | 5 A ÷ 175 A |
|---|---|
| Duty cycle at 175 A | 25% |
| Duty cycle at 140 A | 60% |
| Duty cycle at 120 A | 100% |
| Weight | 10,2 Kg |
| Dimensions | 210 x 330 x 480 mm |
| Protection class | IP 23 |
All Lincoln Electric 175TP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum welding current?
The maximum welding current is 175 A.
What is the duty cycle at 175 A?
The duty cycle is 25% at 175 A.
What is the maximum incline for stable operation?
The stability of the equipment is guaranteed only for an incline of maximum 10°.
Can this machine be used for battery charging?
No, welding/cutting equipment must only be used for the purpose for which it is intended and never for battery charging.
What is the maximum welding current for this unit?
The maximum welding current is 175 A.
From: Lincoln Electric 175TP Welding Power Source User Manual
Is this equipment suitable for public areas?
No, Class A equipment like this is not intended for use where power supply is destined for the general public.
From: Lincoln Electric 175TP Welding Power Source User Manual
