Key facts
- Brand
- Lincoln Electric
- Model
- V160-S
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN · PT · ES
- Last added
- 2023-10-15
Start here

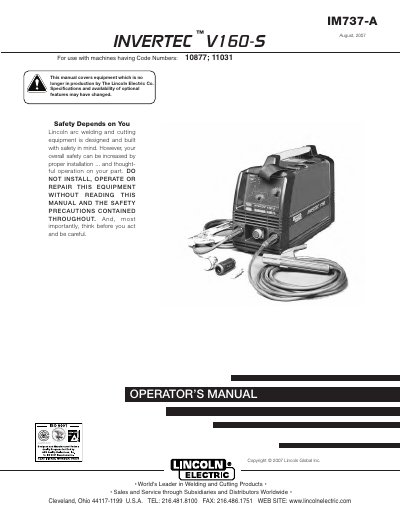

Lincoln Electric V160-S Operator's Manual
This manual provides essential safety information and operating guidelines for the Lincoln Electric V160-S welding equipment. It emphasizes that proper installation and thoughtful operation are critical to ensuring overall safety during use.
The document details specific safety protocols for both gasoline and diesel engine-powered units, including fuel handling, ventilation requirements, and protection against moving parts. Additionally, it outlines precautions for arc rays, electric shock risks, and exposure to fumes and gases generated during welding operations.
Lincoln Electric V160-S specifications
| Protection Rating | IP23S |
|---|---|
| Operating Voltage (V160) | 230Vac |
| Operating Voltage (V160-2V) | 115 / 230Vac |
| Max Ambient Temperature | 40 °C |
Source: Lincoln Electric V160-S, V160-T & V160-TP Welding Machine User Manual
All Lincoln Electric V160-S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety precautions are required before performing maintenance on the engine?
You must turn the engine off before troubleshooting or maintenance unless the work requires it to be running, and you should disconnect spark plug wires or the distributor cap to prevent accidental starting.
How should the work cable be connected to minimize exposure to electric and magnetic fields?
The work cable should be connected to the workpiece as close as possible to the area being welded.
Who is authorized to install and operate this equipment?
This equipment must be used by qualified people, and installation, operation, maintenance, and repair procedures must be performed only by qualified personnel.
From: Lincoln Electric V160-S, V160-T & V160-TP Welding Machine User Manual
What safety equipment is required for arc welding?
Operators must use a mask with a filter and appropriate protections to protect eyes from sparks and arc rays, and wear suitable ignifuge clothing to protect skin.
From: Lincoln Electric V160-S, V160-T & V160-TP Welding Machine User Manual
What safety measures are required for arc welding?
Users must use appropriate eye protection with a filter up to grade 15 and wear flame-resistant clothing.
From: Lincoln Electric INVERTEC V160-S, V160-T & V160-TP Manual
What is the maximum angle of inclination for placing this machine?
The machine must not be placed on a surface with an inclination greater than 15 degrees from the horizontal.
From: Lincoln Electric INVERTEC V160-S, V160-T & V160-TP Manual
