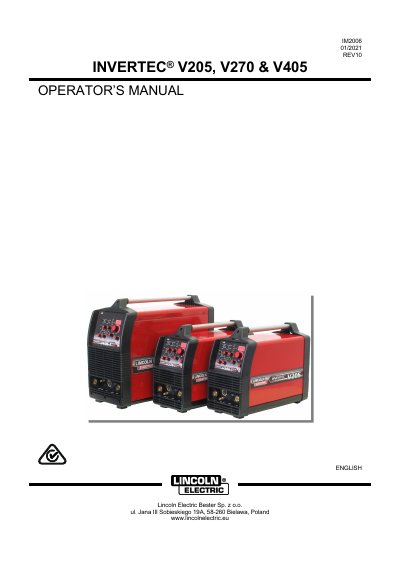

Lincoln Electric INVERTEC V205, V270 & V405 Operator's Manual
This document serves as the Operator's Manual for the INVERTEC V205, V270, and V405 welding power sources manufactured by Lincoln Electric. It covers essential topics including technical specifications for various models, ECO design information, electromagnetic compatibility (EMC) guidelines, safety instructions, and installation procedures. The manual also details recommended input cable and fuse sizes, physical dimensions, and operating temperature ranges for each specific model variant.
Read onlineLincoln Electric V205 specifications
| Protection Rating | IP23S |
|---|---|
| Max Ambient Temperature | 40°C |
| Max Input Voltage Spike (230Vac) | 410V peak |
| Max Input Voltage Spike (400Vac) | 720V peak |
Source: Lincoln Electric INVERTEC V205, V270, V405 Welding Machine Operator's Manual
All Lincoln Electric V205 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Who is qualified to operate this equipment?
This equipment must be used by qualified personnel.
From: Lincoln Electric INVERTEC V205, V270, V405 Welding Machine Operator's Manual
What is the maximum recommended ambient temperature for operation?
The machine should not be operated in areas with an ambient temperature greater than 40°C.
From: Lincoln Electric INVERTEC V205, V270, V405 Welding Machine Operator's Manual
What is the maximum incline allowed for operating this machine?
The machine must not be operated on a surface with an incline greater than 15° from horizontal.
From: Lincoln Electric INVERTEC V205/V270/V405 Operator's Manual
What is the maximum ambient temperature for normal operation?
The machine should not be operated in areas where the ambient temperature exceeds 40°C.
From: Lincoln Electric INVERTEC V205/V270/V405 Operator's Manual
What is the recommended input cable size for the INVERTEC V205?
The recommended input power cable is 3 Conductor, 4mm2.
From: Lincoln Electric INVERTEC V205, V270 & V405 Operator's Manual
What is the recommended input cable size for the INVERTEC V270?
For 400V input, use 4 Conductor, 2.5mm2; for 230V input, use 4 Conductor, 4mm2.
From: Lincoln Electric INVERTEC V205, V270 & V405 Operator's Manual
