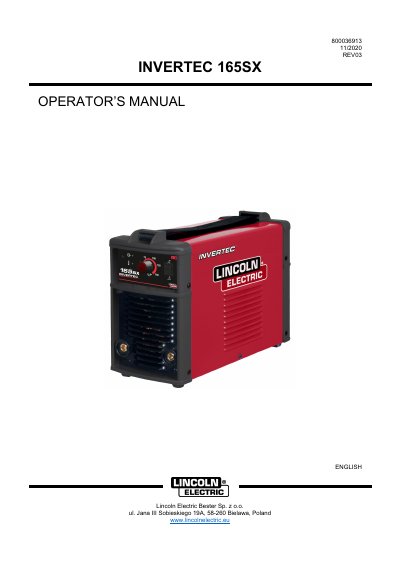

Lincoln Electric INVERTEC 165SX Operator's Manual
The document is an operator's manual for the INVERTEC 165SX inverter welding machine manufactured by Lincoln Electric. It covers technical specifications, electromagnetic compatibility (EMC) guidelines, and comprehensive safety warnings regarding electric shock, arc rays, fumes, and fire hazards.
Key sections include installation instructions, typical gas usage tables for MIG/MAG and TIG processes, spare parts lists, and compliance information with European standards such as EN 60974.1.
Lincoln Electric INVERTEC 165SX specifications
| Primary Voltage | 230 V |
|---|---|
| Frequency | 50/60 Hz |
| Effective Consumption | 15 A |
| Maximum Consumption | 21,5 A |
| Fuse | 16 A |
| Open Circuit Voltage | 48,4 V |
| Welding Current | 10 A ÷ 160 A |
| Duty Cycle at 30% | 160 A |
| Duty Cycle at 60% | 140 A |
| Duty Cycle at 100% | 120 A |
| Protection Class | IP 23 |
| Insulation Class | H |
| Weight | 8,2 Kg |
| Dimensions | 265 x 162 x 385 mm |
All Lincoln Electric INVERTEC 165SX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Who is authorized to install and operate this equipment?
Only qualified persons should use this equipment and perform installation, operation, maintenance, and repair procedures.
What safety measures are required for arc welding?
Operators must use a mask with a filter and adequate protection for eyes and skin, and wear fire-resistant clothing.
What is the maximum welding current?
The machine supports a welding current range from 10 A to 160 A.
What is the duty cycle at 160 A?
The duty cycle is 30% when operating at a welding current of 160 A.
What is the maximum incline for which the stability of the equipment is guaranteed?
The stability of the equipment is guaranteed only for an incline of maximum 10°.
From: Lincoln Electric INVERTEC 165SX Welding Machine Operator's Manual
What protection degree filter is required for the personal protective equipment when welding?
The equipment requires Personal Protective Equipment having a filter with a protection degree up to a maximum of 15.
From: Lincoln Electric INVERTEC 165SX Welding Machine Operator's Manual
