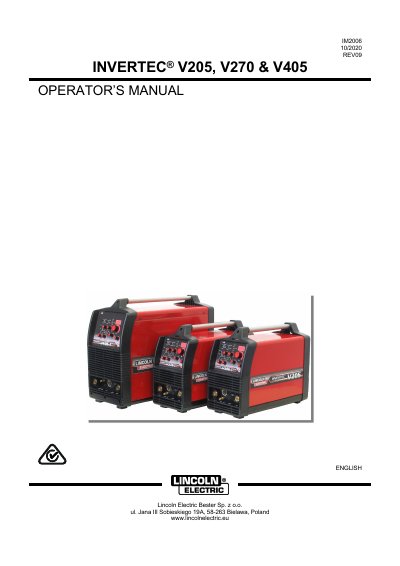

This manual provides technical specifications, installation and operator instructions for the INVERTEC® V205, V270 & V405 inverters.
This document serves as the Operator's Manual for the Lincoln Electric Invertec V205, V270, and V405 inverter welding machines. It provides essential technical specifications, including input/output ratings, physical dimensions, and recommended cable sizes for various models.
The manual also covers operational guidelines, safety precautions regarding electromagnetic compatibility (EMC), and environmental information such as efficiency and idle power consumption. It includes instructions for installation and operator usage to ensure safe and effective welding performance.
| Input Voltage (V205) | 230 / 400V ± 10% Single Phase |
|---|---|
| Input Voltage (V270) | 400V ± 15% (V270) / 230 / 400V ± 10% (V270 2V) |
| Input Voltage (V405) | 400V ± 15% Three Phase |
| Maximum Open Circuit Voltage (CE model) | 48 Vdc |
| Maximum Open Circuit Voltage (Australia model) | 32 Vdc |
| Weight (V205) | 14.1 - 15.1 Kg |
| Weight (V270) | 13.5 - 14.5 Kg |
| Weight (V405) | 31 - 33 kg |
The recommended input power cable is a 3 Conductor, 4mm2 Superlag cable.
For 400V input, use a 4 Conductor, 2.5mm2 cable; for 230V input, use a 4 Conductor, 4mm2 cable.
The recommended input power cable is a 4 Conductor, 4mm2 Superlag cable.
Information about dismantling and Critical Raw Material (CRM) can be found at the Lincoln Electric support website.
