Key facts
- Brand
- Lincoln Electric
- Model
- 165SX
- Documents
- 2
- Languages
- EN
- Last added
- 2026-10-27
Start here

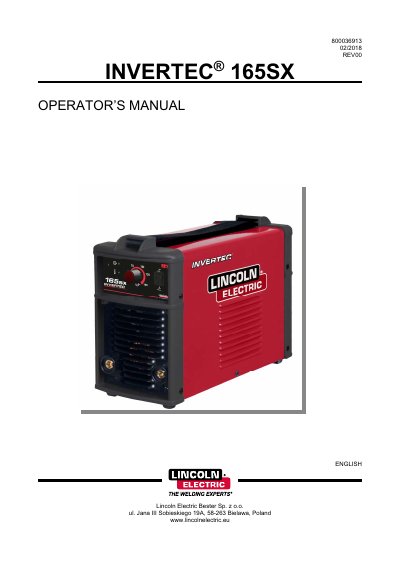

Lincoln Electric INVERTEC 165SX Welding Machine Operator's Manual
The document is an English operator's manual for the INVERTEC 165SX welding machine manufactured by Lincoln Electric. It includes a declaration of conformity with European directives and standards such as EN 60974-1:2012.
The guide covers essential topics including technical descriptions, installation procedures for stick and TIG lift welding, control panel layouts, maintenance schedules, troubleshooting common malfunctions, and wiring diagrams. It also details safety precautions regarding electric shock, arc rays, fumes, and electromagnetic compatibility.
Lincoln Electric 165SX specifications
| Rated Output | 160A@20% 100A@60% 80A@100% |
|---|---|
| Dimensions HxWxD | 265 x 162 x 385 mm |
| Protection Class | IP23 |
Source: Lincoln Electric Invertec 165S & 165SX Inverter Welder Product Leaflet
All Lincoln Electric 165SX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What welding processes does the Invertec 165S support?
The Invertec 165S supports Stick and TIG Scratch welding.
From: Lincoln Electric Invertec 165S & 165SX Inverter Welder Product Leaflet
What is the weight of the Invertec welders?
The units are lightweight, weighing less than 9 kg (7 kg for 165S and 8.2 kg for 165SX).
From: Lincoln Electric Invertec 165S & 165SX Inverter Welder Product Leaflet
What is the maximum incline for which the stability of the equipment is guaranteed?
The stability of the equipment is guaranteed only for an incline of maximum 10°.
From: Lincoln Electric INVERTEC 165SX Welding Machine Operator's Manual
What protection degree filter is required for the personal protective equipment when welding?
The equipment requires Personal Protective Equipment having a filter with a protection degree up to a maximum of 15.
From: Lincoln Electric INVERTEC 165SX Welding Machine Operator's Manual
