Start here

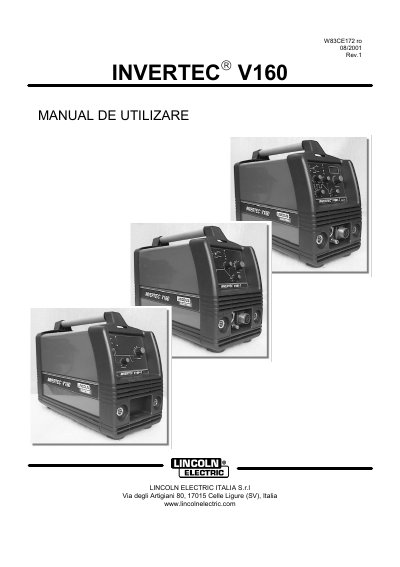

Lincoln Electric V160 Welding Power Source User Manual
The document is a user manual for the Lincoln Electric INVERTEC V160 welding power source. It covers essential safety measures regarding electric shock, radiation, and fumes before operation.
The guide details installation procedures, including placement requirements (max 15° inclination), ventilation needs, and electrical connection verification. It explains how to configure connections for Manual Metal Arc (MMA/SEM) and Tungsten Inert Gas (TIG/WIG) welding processes.
Lincoln Electric V160 specifications
| Input Voltage RMS (V160) | 230Vac ± 15% |
|---|---|
| Input Voltage RMS (V160 2V) | 115Vac or 230 Vac ± 10% |
| Protection Class | IP23S |
Source: Lincoln Electric V160 Welding Machine Operator's Manual
All Lincoln Electric V160 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Lincoln Electric V160 Welding Machine Operator's Manual 10 p
- Lincoln Electric Invertec V160 Operator's Manual 9 p
- Lincoln Electric V160 Welding Power Source User Manual 14 p
- Lincoln Electric V160-S, V160-T & V160-TP Welding Machine User Manual 13 p
- Lincoln Electric INVERTEC V160-S, V160-T & V160-TP Manual 13 p
Questions answered in these manuals
What are the voltage requirements for the V160 model?
The RMS input voltage must be 230Vac ± 15%.
From: Lincoln Electric V160 Welding Machine Operator's Manual
Can this machine be used with autonomous generators?
Yes, provided the generator supplies 230Vac auxiliary power and meets specific voltage and frequency conditions.
From: Lincoln Electric V160 Welding Machine Operator's Manual
What is the protection rating of the machine?
The machine has a protection rating of IP23S.
Can this machine operate on engine driven generators?
Yes, it can operate on engine driven generators provided the auxiliary supply meets specific voltage and frequency conditions.
Who is authorized to operate this equipment?
The equipment must be used only by qualified and properly trained personnel.
From: Lincoln Electric V160 Welding Power Source User Manual
What is the maximum allowable ambient temperature for operation?
The unit should not be used in areas where the ambient temperature exceeds 40°C.
From: Lincoln Electric V160 Welding Power Source User Manual
