Start here

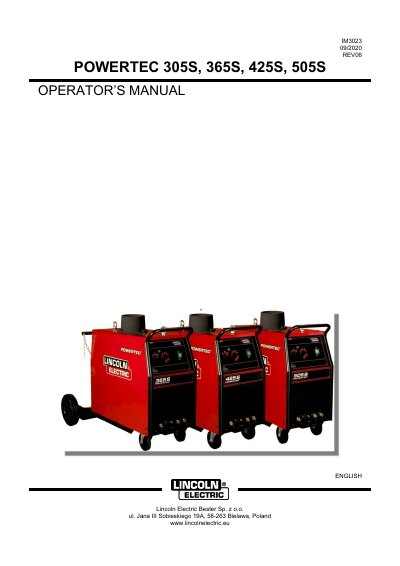

Lincoln Electric POWERTEC 305S/365S/425S/505S Operator's Manual
This document is the Operator's Manual for the Lincoln Electric POWERTEC series of arc welding machines, specifically models 305S, 365S, 425S, and 505S. It provides essential information for the safe operation, installation, and maintenance of these industrial welding units.
The manual includes detailed technical specifications for input voltage, output current ranges, and physical dimensions for each model. It also covers safety warnings regarding electric shock, arc rays, and fumes, as well as guidelines for electromagnetic compatibility (EMC) and recommended spare parts.
Lincoln Electric 505S specifications
| Weight | 50 kg |
|---|---|
| Input Voltage (405S/405SP) | 400V + 10% |
| Input Voltage (505S/505SP) | 3-phase 50/60Hz |
Source: SPEEDTEC 405S, 405SP, 505S & 505SP OPERATOR'S MANUAL
All Lincoln Electric 505S documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the EMC classification of this product?
The EMC classification of this product is class A in accordance with electromagnetic compatibility standard EN 60974-10.
Is this equipment intended for residential use?
No, the Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low-voltage supply system.
What is the recommended fuse size for the POWERTEC 505S?
The recommended fuse size is D63A for 230V and D40A for 400V.
From: Lincoln Electric POWERTEC 305S/365S/425S/505S Operator's Manual
What is the input power cable requirement for the POWERTEC 425S?
It requires a 4 Conductor, 6 mm2 cable.
From: Lincoln Electric POWERTEC 305S/365S/425S/505S Operator's Manual
