IR210SG12HCB is a 210 square millimeter thyristor produced by International Rectifier. The rated reverse breakdown voltage of the thyristor is 1200 V, the maximum on-state voltage is 1.5 V, the maximum trigger current is 60 mA, the maximum trigger voltage is 1.9 V, the maximum holding current range is 10 to 125 mA, and the maximum latching current is 200 mA.

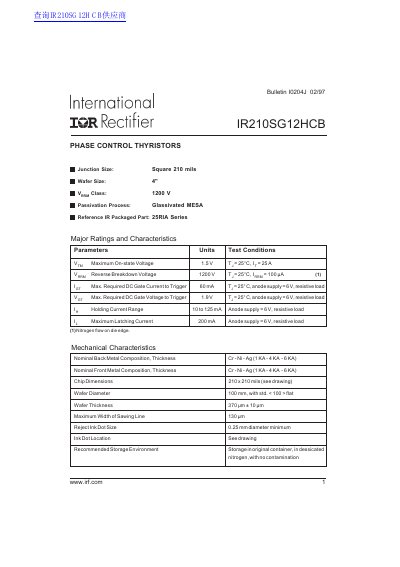

This document is a technical bulletin (Bulletin 10204J) published by International Rectifier in February 1997. It provides comprehensive data for the IR210SG12HCB device, which is identified as a Phase Control Thyristor with a square junction size of 210 mils and a voltage class of 1200 V.
The datasheet includes major electrical ratings such as maximum on-state voltage (1.5V), reverse breakdown voltage (1200V), and gate trigger requirements. It also details mechanical characteristics including wafer dimensions, metal composition, and packaging information for the 25RIA Series reference package.
| Maximum On-state Voltage (Vow) | 1.5 V |
|---|---|
| Reverse Breakdown Voltage (Vary) | 1200 V |
| Max. Required DC Gate Current to Trigger (Ior) | 60 mA |
| Max. Required DC Gate Voltage to Trigger (Vor) | 1.9 V |
| Holding Current Range (Iy) | 10 to 125 mA |
| Maximum Latching Current (IL) | 200 mA |
| Junction Size | Square 210 mils |
The device has a Voltage Class of 1200 V.
It is a Solderable SCR (S).
