Key facts
- Brand
- Haier
- Model
- 21FV6H-B
- Category
- Television
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-16
Start here

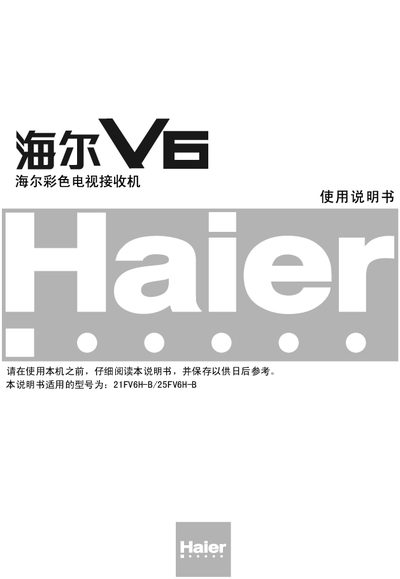

Haier 21FV6H-B/25FV6H-B Television User Manual
User Manual 32 pages · 6.7 MB · ZH
This manual provides step‑by‑step instructions for installing, operating, and maintaining Haier colour televisions model 21FV6H-B and 25FV6H-B. It covers safety precautions, antenna connection, remote‑control functions, picture and sound adjustments, and built‑in games.
The guide also includes technical specifications, wiring diagrams for external audio/video devices, and a simple fault‑diagnosis section to help users resolve common issues without service calls. This manual is written in Chinese.
Haier 21FV6H-B specifications
| Screen size | 21" (51 cm) for 21FV6H‑B, 25" for 25FV6H‑B |
|---|---|
| Power consumption | 70 W (21FV6H‑B) / 120 W (25FV6H‑B) |
| TV program storage | 218 programs |
| Supported video standards | PAL D/K I, PAL NTSC 3.58/4.43 |
| Input connectors | Component Y/Cb/Cr, video, audio, antenna (75 Ω coax) |
All Haier 21FV6H-B documents by type
Service Manual 1
Disassembly, diagnostics and part numbers, for repair.
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
