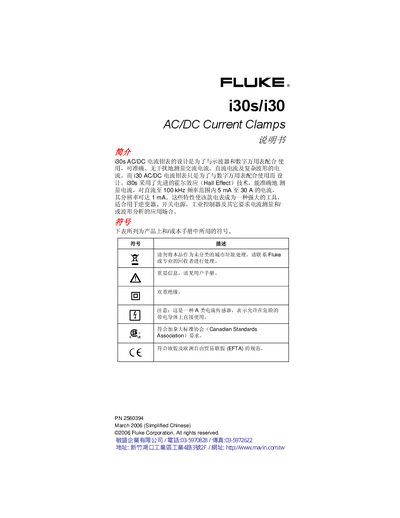

Fluke i30s/i30 AC/DC Current Clamp Meter User Manual
The i30s/i30 AC/DC current clamp meter is designed for use with oscilloscopes and digital multimeters to accurately measure AC, DC and complex waveform currents. It uses Hall‑Effect technology to measure currents from 5 mA to 30 A over a frequency range up to 100 kHz, making it suitable for inverter, switch‑mode power supply and industrial controller applications.
The manual includes safety warnings, proper handling procedures, battery replacement steps, zero‑adjustment instructions, and detailed technical specifications. Qualified personnel must follow the safety precautions, disconnect the meter before battery removal, and ensure the probe is not damaged before use. This manual is written in Chinese.
Fluke I30 specifications
| Measuring range | 5 mA to 30 A |
|---|---|
| Frequency range | DC to 100 kHz |
| Resolution | 1 mA |
| Weight | 290g |
Source: Fluke i30s/i30 AC/DC Current Clamp Instruction Sheet
All Fluke I30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of battery is required?
The device requires a 9V Alkaline, NEDA 1604/PP3 battery.
How do I adjust the output zero?
Depress the thumbwheel and rotate it while ensuring the probe is away from the current carrying conductor.
What safety precautions must be followed when using the i30s/i30 clamp meter?
Only qualified personnel should operate the i30s/i30, disconnect it from all live circuits before removing the battery cover, and always use the protective shield when measuring live conductors.
How long does the battery last and how is low battery indicated?
The built‑in 9 V alkaline battery provides about 30 hours of operation; a low‑battery indicator flashes the red LED when voltage is insufficient.
