Fluke 1587/1577 Manuals

ManualLib has 7 documents for the Fluke 1587/1577: 1 service manual, 3 user manuals, 1 datasheet, 1 product leaflet. Every file can be read online or downloaded as a PDF for free.

Service Manual 1User Manual 3Datasheet 1Product Leaflet 1

Key facts

Brand
Fluke
Model
1587/1577
Industry
Industrial
Documents
7
Languages
EN · ZH
Last added
2026-11-10

Start here

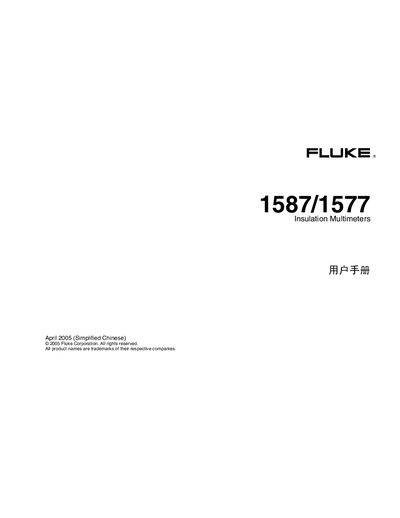

Fluke 1587/1577 Insulation Multimeters User Manual

Fluke 1587/1577 Insulation Multimeters User Manual

User Manual 46 pages · 1.9 MB · ZH

This document is the user manual for the Fluke 1587 and 1577 Insulation Multimeters, published in April 2005. It covers product introduction, safety precautions, detailed operating procedures for various measurements, and technical specifications. This manual is written in Chinese.

Read online

Fluke 1587/1577 specifications

Display6000-count and a 3 ¾ digit display
Maximum Voltage Applied to Any Terminal1000 V ac rms or dc
Storage Temperature-40 °C to 60 °C (-40 °F to 140 °F)
Operating Temperature-20 °C to 55 °C (-4 °F to 131 °F)
BatteriesFour AA batteries (NEDA 15A or IEC LR6)
Battery LifeMeter use 1000 hours
Size5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)
Weight550 g (1.2 lb.)
IP RatingIP40
SafetyCAT III 1000 V, CAT IV 600 V

Source: Fluke 1587/1577 Insulation Multimeter Calibration Manual

All Fluke 1587/1577 documents by type

Service Manual 1

Disassembly, diagnostics and part numbers, for repair.

User Manual 3

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Datasheet 1

Ratings, dimensions and ordering codes, for selection and design work.

Other documents 1

Questions answered in these manuals

What is the maximum voltage that can be applied to any terminal?

The maximum voltage applied to any terminal is 1000 V ac rms or dc.

From: Fluke 1587/1577 Insulation Multimeter Calibration Manual

What type of batteries does the meter use?

The meter uses four AA batteries (NEDA 15A or IEC LR6).

From: Fluke 1587/1577 Insulation Multimeter Calibration Manual

What is the Fluke 1587/1577 device used for?

It is a battery-powered, true-RMS insulation multimeter used to measure AC/DC voltage and current, resistance, continuity, frequency, capacitance, temperature, and insulation testing.

From: Fluke 1587/1577 Insulation Multimeters Users Manual

What safety category standards does the Fluke 1587/1577 meet?

The meter meets CAT III and CAT IV IEC 61010 standards for transient impulse protection.

From: Fluke 1587/1577 Insulation Multimeters Users Manual

What is the battery life for insulation testing?

New alkaline batteries can perform at least 1000 insulation tests under standard conditions.

From: Fluke 1587/1577 Insulation Multimeters User Manual

What is the maximum capacitance load?

The instrument can operate with loads of 1 µF or less.

From: Fluke 1587/1577 Insulation Multimeters User Manual
