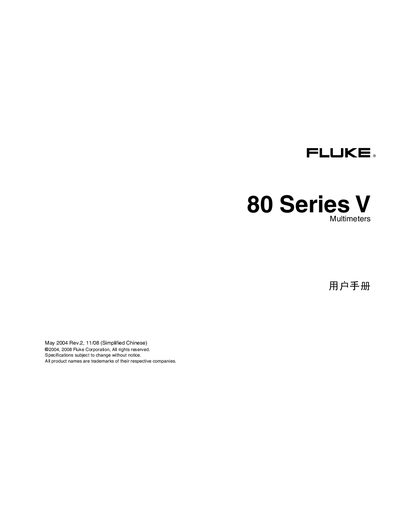

Fluke 80 Series V Multimeter User Manual
This manual introduces the Fluke 80 Series V digital multimeter, covering safety notices, product features, and how to operate the instrument safely and accurately. It is intended for users of the 80 Series V models (including 83 and 87 variants).
Key sections include safety precautions, detailed function descriptions (voltage, current, resistance, capacitance, temperature, frequency, duty‑cycle, etc.), measurement procedures, and maintenance topics such as battery replacement, fuse testing, and part repair. Contact information and warranty details are also provided. This manual is written in Chinese.
Fluke 80 Series V specifications
| Display resolution | 6000 counts, 4 updates/sec |
|---|---|
| Analog bar graph segments | 33 segments, 40 updates/sec |
| Operating temperature | -20 °C to +55 °C |
| Maximum operating altitude | 2000 m |
| Battery type | 9 V zinc (NEDA 1604, 6F22, 006P) |
| Weight | 12.5 oz (355 g) |
| Dimensions | 1.25 × 3.41 × 7.35 in |
| Maximum input voltage | 1000 V RMS |
| Fuse protection | 44 A/100 A, 1000 V fast‑blow |
| IP rating | IP30 |
All Fluke 80 Series V documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What warranty does Fluke provide for the 80 Series V multimeter?
Fluke offers a lifetime limited warranty that is valid for at least ten years from purchase, covering material and workmanship defects.
How can I register my Fluke 80 Series V multimeter?
You can register the product online at register.fluke.com or through the global Fluke website.
What battery does the 80 Series V multimeter use?
It uses a 9 V zinc battery (NEDA 1604, 6F22, or 006P).
What is the maximum input voltage the multimeter can measure?
The highest voltage between any terminal and ground is 1000 V RMS.
