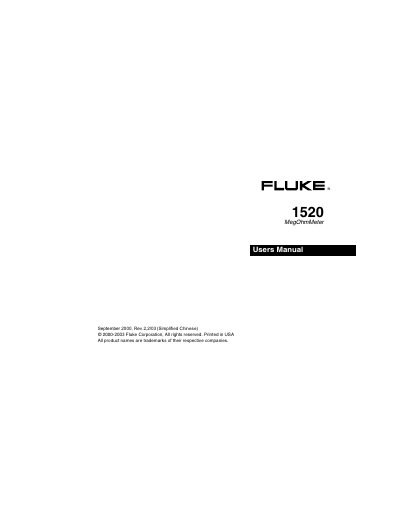

Fluke 1520 MegOhmMeter User Manual
The Fluke 1520 is a handheld instrument designed primarily for measuring resistance and insulation. The document details how to open the packaging, identifies key functions such as the rotary switch and TEST/LOCK buttons, and explains display information. It provides step-by-step instructions for connecting test leads to live circuits, performing automatic shutdowns, and conducting specific measurements including insulation resistance, low resistance, general resistance, and voltage. This manual is written in Chinese.
Read onlineFluke 1520 specifications
| Battery Type | C size 1.5 V Alkaline (4 cells) |
|---|---|
| Fuse Rating | 0.5 A 660 V Fast Blow |
| Insulation Resistance Range | 0.250 MΩ to 4000 MΩ |
| Voltage Range | 600 V DC, 50/60 Hz |
| Operating Temperature | -10 °C to +50 °C |
| Dimensions | 23.4 x 10 x 6.4 cm (9.2 x 3.9 x 2.5 in) |
| Weight | 1 kg (2.2 lbs.) |
All Fluke 1520 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is included in the Fluke 1520 kit?
The kit includes two test leads, two probes, two crocodile clips, a hand strap, a carrying case, and a CD.
How do you lock the insulation resistance or low resistance function?
Press and hold TEST, then press LOCK, and release both simultaneously to display the LOCK icon.
