Key facts
- Brand
- Fluke
- Model
- 787
- Category
- multimeter
- Industry
- Electronics
- Documents
- 3
- Languages
- ZH · EN
- Last added
- 2026-10-12
Start here

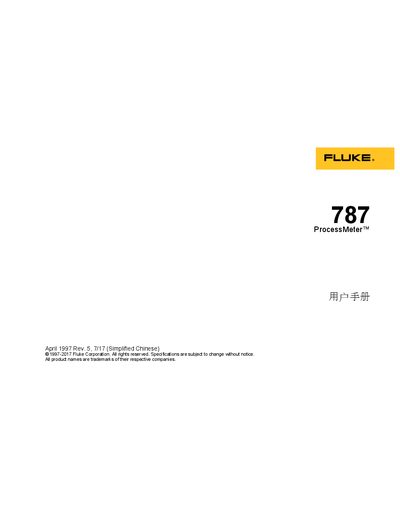

Fluke 787 ProcessMeter User Manual
The Fluke 787 ProcessMeter is a battery-operated handheld test tool designed to measure electrical parameters and provide stable or linearly changing current to test process instruments. In addition to the full functionality of a digital multimeter, it can output current for calibration and testing purposes. The device features a digital display, TouchHold technology, and various input/output jacks for versatile measurements. This manual is written in Chinese.
Read onlineFluke 787 specifications
| Battery Requirement | One 9V battery (IEC 6LR61) |
|---|---|
| Operating Temperature | -20 °C to 55 °C |
| Storage Temperature | -40 °C to 60 °C |
| Weight | 369 g (13 oz) |
| Dimensions | 32 mm (H) x 87 mm (W) x 187 mm (L) |
| Fuse Specification | 440 mA 1000 V Fast Blow |
All Fluke 787 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the part number for the specified fuse?
The specified fuse part number is 943121.
How long is the standard warranty period?
The standard warranty period is one year.
What safety precautions should be followed when using the ProcessMeter?
Read all safety information, keep the battery door closed and locked, use approved PPE, avoid applying voltages above the rated limits, and never work alone in hazardous environments.
What is the input impedance of the ProcessMeter?
The meter has a nominal input impedance of 10 MΩ.
What accessories are included with the Fluke 708 calibrator?
It includes a C10 Protective Yellow Holster, TL75 Test Leads, AC70 Test Clips, and an instruction sheet in 14 languages.
What accuracy does the Fluke 715 provide for voltage measurements?
The Fluke 715 offers a voltage measurement accuracy of 0.025% plus 1 least significant digit.
