Key facts
- Brand
- Fluke
- Model
- TIR2
- Industry
- Industrial
- Documents
- 5
- Languages
- EN · ZH
- Last added
- 2023-10-18
Start here

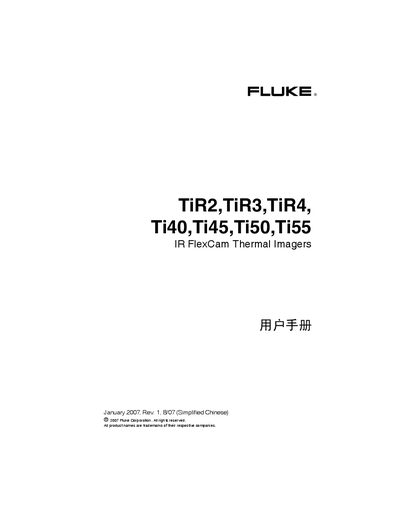

Fluke TiR2/TiR3/TiR4/Ti40/Ti45/Ti50/Ti55 User Manual
This manual provides safety instructions, operating procedures, and configuration settings for Fluke IR FlexCam thermal imagers. It includes guidance on powering the device, adjusting temperature span, capturing and processing images, and using the SmartView software for image review and annotation.
Additional sections cover battery charging and calibration, default device settings, available accessories, and an appendix with reference tables. The document is written in Simplified Chinese and spans 134 pages of detailed instructions. This manual is written in Chinese.
Fluke TIR2 specifications
| Warranty Period | two years |
|---|---|
| Parts Warranty | 90 days |
| Software Warranty | 90 days |
Source: Fluke TiR2, TiR3, TiR4, Ti40, Ti45, Ti50, Ti55 IR FlexCam Thermal Imagers Users Manual
All Fluke TIR2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Fluke TiR2,TiR3,TiR4, Ti40,Ti45,Ti50,Ti55 IR FlexCam Thermal Imagers Users Manual 132 p
- Fluke TiR2, TiR3, TiR4, Ti40, Ti45, Ti50, Ti55 IR FlexCam Thermal Imagers Users Manual 132 p
- Fluke TiR2/TiR3/TiR4/Ti40/Ti45/Ti50/Ti55 User Manual 134 p
- FLUKE TiR2/3/4 Ti40/45/50/55 user manual
- Fluke TiR2/TiR3/TiR4/Ti40/Ti45/Ti50/Ti55 IR FlexCam Thermal Imager User Guide 20 p
Questions answered in these manuals
How do I set the temperature level and span?
Use the Display Screen menus to set the temperature level and span manually or automatically. The manual also covers arbitrary fixed temperature settings.
From: Fluke TiR2,TiR3,TiR4, Ti40,Ti45,Ti50,Ti55 IR FlexCam Thermal Imagers Users Manual
What is the thermal sensitivity of the TiR2, Ti45, and Ti40 models?
The thermal sensitivity is ≤ 0.080°C at 30°C (80 mK) for the Ti45 and TiR2 models, and ≤ 0.090°C at 30°C (90 mK) for the Ti40 model.
From: Fluke TiR2,TiR3,TiR4, Ti40,Ti45,Ti50,Ti55 IR FlexCam Thermal Imagers Users Manual
What is the warranty period for Fluke thermal imagers?
The warranty period is two years and begins on the date of shipment.
From: Fluke TiR2, TiR3, TiR4, Ti40, Ti45, Ti50, Ti55 IR FlexCam Thermal Imagers Users Manual
How can I register my product online?
You can register your product online by visiting register.fluke.com.
From: Fluke TiR2, TiR3, TiR4, Ti40, Ti45, Ti50, Ti55 IR FlexCam Thermal Imagers Users Manual
How can I adjust the temperature span?
The manual provides both manual and automatic temperature span adjustments under the “手动水平和跨度调整” and “自动水平和跨度调整” sections.
How do I add annotations to images in SmartView?
Create an annotation list in SmartView as explained in the “在 SmartView 中创建附注列表” section.
