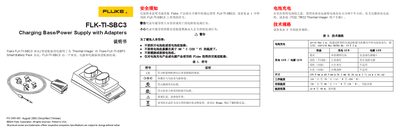

Fluke FLK‑TI‑SBC3 Charging Base Power Supply User Manual
This manual describes the FLK‑TI‑SBC3 charging base/power supply, which consists of a charging dock, a power supply, and an AC adapter for charging the Fluke FLK‑TI‑SBP3 smart battery pack used with thermal imagers. It includes safety symbols, recommended usage, and contact details for Fluke support.
The guide covers safety warnings, first‑time charging instructions, technical specifications such as voltage, current, dimensions, operating and storage temperature ranges, and humidity limits. Warranty terms and registration information are also provided. This manual is written in Chinese.
Fluke FLK-TI-SBC3 specifications
| Battery charging voltage (DC) | 10‑15 VDC |
|---|---|
| Battery charging current (DC) | 2 A |
| AC input voltage | 100‑240 Vac 50/60 Hz |
| AC output voltage | 15 V 2 A |
| Dimensions | 159.5 mm × 68.9 mm × 51.3 mm |
| Operating temperature | -10 °C to 70 °C |
| Storage temperature | -20 °C to 80 °C |
| Humidity range | 10 % to 95 % non‑condensing |
Source: Fluke FLK‑TI‑SBC3 Charging Base Power Supply User Manual
All Fluke FLK-TI-SBC3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What AC adapter should be used with the FLK‑TI‑SBC3?
Only AC adapters approved by Fluke may be used with the charging base.
From: Fluke FLK‑TI‑SBC3 Charging Base Power Supply User Manual
What are the operating temperature limits for the FLK‑TI‑SBC3?
The device operates safely between -10 °C and 70 °C.
From: Fluke FLK‑TI‑SBC3 Charging Base Power Supply User Manual
How long should the battery be charged before first use?
Charge the battery pack for at least two and a half hours with the dual‑seat charger before first use.
How can I contact Fluke for support?
You can call Fluke worldwide using the listed phone numbers (e.g., US 1‑800‑760‑4523, Canada 1‑800‑363‑5853, Europe +31‑402‑675‑200).
