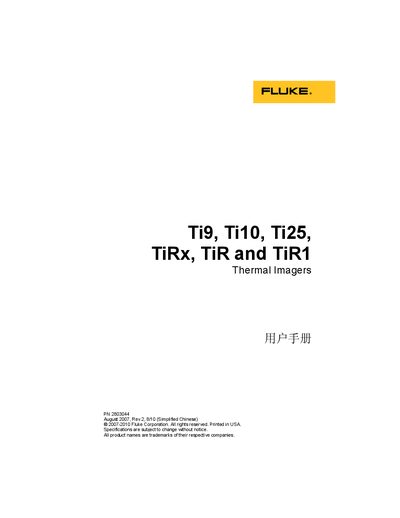

Fluke Ti9 Ti10 Ti25 TiRx TiR TiR1 Thermal Imager User Manual
The Fluke Ti series (Ti9, Ti10, Ti25, TiRx, TiR, TiR1) are handheld thermal imaging cameras used for equipment maintenance and fault diagnosis. The manual provides safety instructions, operating procedures, and detailed specifications for each model.
Key topics include battery charging, power on/off, menu navigation, image capture, storage, IR‑Fusion features, and model‑specific settings such as emissivity and temperature range. Warranty information and contact details for service are also included. This manual is written in Chinese.
Fluke TiR1 specifications
| Temperature range (Ti25) | -20 °C to +350 °C |
|---|---|
| Display resolution | 640 × 480 pixels |
| Refresh rate | 9 Hz |
Source: Fluke Ti9 Ti10 Ti25 TiRx TiR TiR1 Thermal Imager User Manual
All Fluke TiR1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for Fluke thermal imagers?
Fluke provides a two‑year warranty from the date of shipment, with a 90‑day parts and service period.
From: Fluke Ti9 Ti10 Ti25 TiRx TiR TiR1 Thermal Imager User Manual
Which models support IR‑Fusion and visible‑light imaging?
IR‑Fusion and visible‑light imaging are available on the Ti10, Ti25, TiR, and TiR1 models.
From: Fluke Ti9 Ti10 Ti25 TiRx TiR TiR1 Thermal Imager User Manual
How long should I charge the battery before first use?
Charge the battery for at least two hours before the first use.
What is the warranty period for the Fluke thermal imagers?
The warranty period is two years from the date of shipment, with a 90‑day parts and service warranty.
