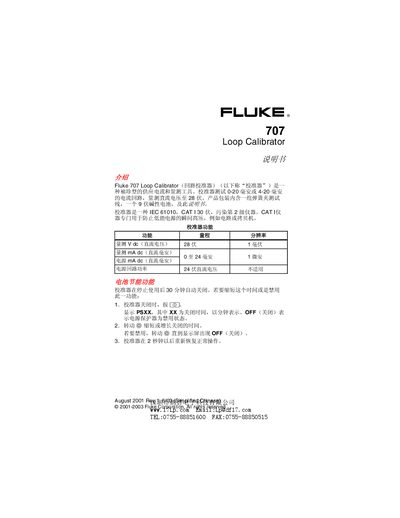

Fluke 707 Loop Calibrator User Manual
The Fluke 707 Loop Calibrator is a pocket‑sized instrument that supplies and measures loop currents (0‑20 mA or 4‑20 mA) and DC voltages up to 28 V. It offers Source, Simulate, Measure, and Loop Power modes, automatic ramp output, and a SpanCheck function for verifying transmitter zero and span.
The manual includes safety information (IEC 61010, CAT II 130 V), battery requirements (single 9 V alkaline), environmental limits, dimensions, weight, and warranty details. It also explains how to adjust the auto‑off timer, change current ranges, and interpret status symbols. This manual is written in Chinese.
Fluke 707 LOOP specifications
| Current measurement range | 0‑20 mA or 4‑20 mA |
|---|---|
| Voltage measurement range | DC up to 28 V |
| Power source | Single 9 V alkaline battery (type 1604A / IEC 6LR61) |
| Auto‑off timer (default) | 30 minutes |
| Maximum terminal voltage | 30 V |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -40 °C to 60 °C |
| Dimensions (W×H×D) | 69.85 mm × 142.87 mm × 50.80 mm |
All Fluke 707 LOOP documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long does the Fluke 707 stay on before it automatically shuts off?
The device automatically shuts off after 30 minutes of inactivity, but the timer can be shortened, lengthened, or disabled.
What safety standards does the Fluke 707 comply with?
It meets IEC 61010‑1‑95 CAT 130 V, CSA C22.2‑1010‑992, EN61010‑1, EN61326, and carries the CE mark.
How can I change the auto‑off timer on the calibrator?
Press the power button (marked /g68) while the device is off; the display shows the timer in minutes, and you can turn the knob to increase or decrease the shutdown time.
How do I enable the automatic ramp current output?
Hold the /g66 button together with /g67 (H) to enter the automatic ramp mode, then select the desired ramp type (slow, fast, or step).
How do I change the output current range?
Turn the calibrator OFF, then press A + D together; the selected range (4‑20 mA or 0‑20 mA) will be saved until changed again.
