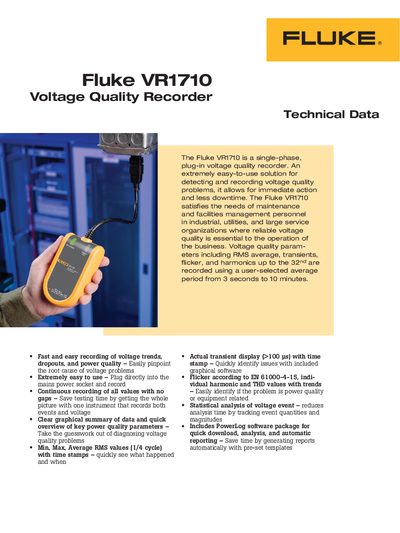

Fluke VR1710 Voltage Quality Recorder Handbook
The Fluke VR1710 is a single‑phase, plug‑in voltage quality recorder designed for fast and easy recording of voltage trends, dropouts, and power‑quality events. It is aimed at maintenance and facilities‑management personnel in industrial, utility, and large‑service environments where reliable voltage quality is essential.
Key features include continuous recording with no gaps, graphical summaries of power‑quality parameters, RMS, transient, flicker, and harmonic measurements, statistical analysis of events, and the included PowerLog software for quick data download, analysis, and automatic reporting. The device offers up to 339 days of recording time, supports multiple recording channels, and meets safety category CAT II 300 V.
Fluke VR1710 specifications
| Operating voltage | 70 V to 300 V |
|---|---|
| Min/Max/Avg RMS value resolution | 0.125 V |
| Number of events | 175,000 |
| Time resolution | 5 ms |
| Voltage resolution | 0.125 V |
| Frequency range | 50 Hz ± 1 Hz and 60 Hz ± 1 Hz |
| Safety category rating | CAT II 300 V |
| Recording time | 1 day to 339 days (depending on averaging time) |
| Number of recording channels | 1 Phase to Neutral; 2 Phase/Neutral to Ground |
All Fluke VR1710 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating voltage range of the Fluke VR1710?
The VR1710 operates from 70 V to 300 V.
How many events can the VR1710 record?
It can record up to 175,000 events.
