Start here

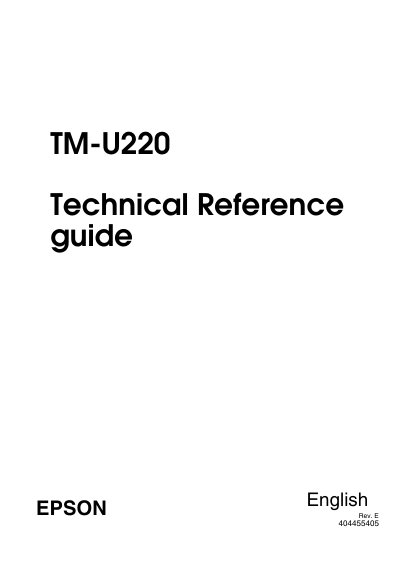

EPSON TM-U220 Technical Reference Guide
This document serves as a technical reference guide for the EPSON TM-U220 printer, intended for users developing hardware, installations, or programs. It provides comprehensive information on the printer's features, specifications, and system planning, including control methods and connection forms.
The guide details setup procedures such as DIP switch configurations and error processing, along with troubleshooting tips and application development information. It also includes notices regarding the replacement of previous models, specifically the TM-U210 and TM-U300.
Epson TM-U220 specifications
| Product Name | TM-U220A / TM-U220B / TM-U220D |
|---|---|
| Model Name | M188A / M188B/ M188D |
| Noise Emission Value | smaller than 70 dB(A) |
All Epson TM-U220 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What is the aim of this manual?
This manual was created to provide information on the TM-U220 printer for anyone who is developing hardware, installations, or programs.
What standards are applied to the printer?
The printer conforms to standards such as CE marking, TÜV (EN 60950), FCC/ICES-003 Class A, UL60950/CSA C22.2 No. 60950, and VCCI Class A.
What power source should be used with the TM‑U220?
Use a safety‑standards‑applied power source rated at 24 V, 2.0‑10.0 A, with a maximum output of 240 VA.
Which DIP switch tables should I use for a US model printer?
If the last letters on the printer are “US”, refer to the “US” DIP switch tables in the manual.
What is the purpose of this manual?
The manual provides information on the TM‑U220 printer for hardware development, installations, and programming.
Which printers are compatible with the ESC/POS command system?
The ESC/POS command system is compatible with all types of EPSON POS printers and displays.
