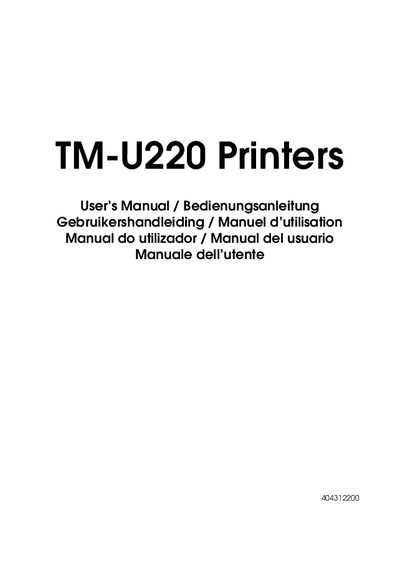

TM-U220 Printers User’s Manual, provides instructions and settings for using the printer.
This manual explains how to install and operate the Epson TM-U220 point‑of‑sale printer. It includes safety cautions, power requirements, and detailed DIP switch tables for configuring serial and parallel interfaces.
The document also contains the printer’s technical specifications, such as print method, speed, dimensions, and ribbon life, as well as maintenance procedures for the autocutter and paper‑jam removal.
| Font A size | 7 × 9 dots |
|---|---|
| Font B size | 9 × 9 dots |
| Character set | 96 alphanumeric, 37 international, 128 × 12 graphic |
| Print speed | 47 Ips (40 columns, 16 cpi) |
| Interface | RS‑232 or IEEE 1284 |
| Power supply | 24 VDC ±5 % |
| Stand‑by power consumption | 22 W |
| Overall dimensions (Type A) | 160 × 286 × 157.5 mm (W × D × H) |
| Mass (Type A) | 2.7 kg |
The printer prints at 47 inches per second (40 columns, 16 cpi) on 76 mm paper.
It requires a 24 VDC supply with a tolerance of ±5 %.
