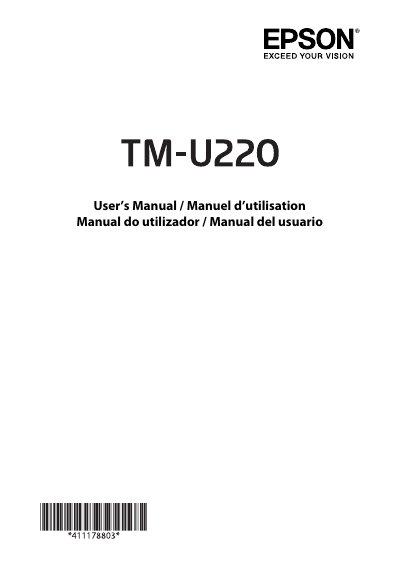

The Epson TM‑U220 user manual provides safety information, setup, operation, DIP switch settings and troubleshooting for the thermal printer.
This manual covers safety precautions, power requirements, and compliance standards for the Epson TM‑U220 thermal printer. It includes detailed DIP switch tables for configuring serial and parallel interfaces, as well as specifications such as print speed, power supply, and ribbon life.
Installation, paper handling, and troubleshooting procedures are described with step‑by‑step instructions and illustrations. The document also provides guidance for resolving common errors, replacing paper rolls, and clearing paper jams.
| Power supply (rated output) | 24 V / 2.0‑10.0 A |
|---|---|
| Maximum power output | 240 VA |
| Print speed (76 mm paper width) | 4.7 lps |
| Interface | RS‑232 or IEEE 1284 |
| Ribbon cassette model | ERC‑38 (B) |
| Weight (Type A) | 5.94 kg |
Use a safety‑standards‑applied power source rated at 24 V, 2.0‑10.0 A, with a maximum output of 240 VA.
If the last letters on the printer are “US”, refer to the “US” DIP switch tables in the manual.
