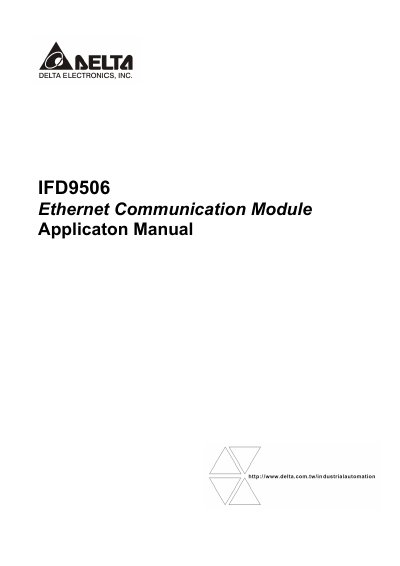

This manual explains how to install, wire and configure the Delta IFD9506 Ethernet Communication Module. It includes safety warnings, hardware dimensions, LED indicators, pin definitions and environmental specifications.
Detailed sections cover Modbus TCP communication, software setup with Delta’s DCISoft and WPLSoft, webpage settings, and multiple application examples for PLC integration and remote monitoring.
| Ethernet ports | 1 RJ‑45 port |
|---|---|
| Ethernet transmission speed | 10/100 Mbps |
| Power supply voltage | 24 VDC |
| Power consumption | 3 W |
| Operating temperature range | 0 °C – 55 °C |
| Weight | 140 g |
Switch off the power before wiring and install the module in an enclosure free of dust, humidity, electric shock and vibration.
The IFD9506 has three digital input contacts.
It supports Modbus TCP as well as ICMP, IP, TCP, UDP, DHCP and SMTP.
